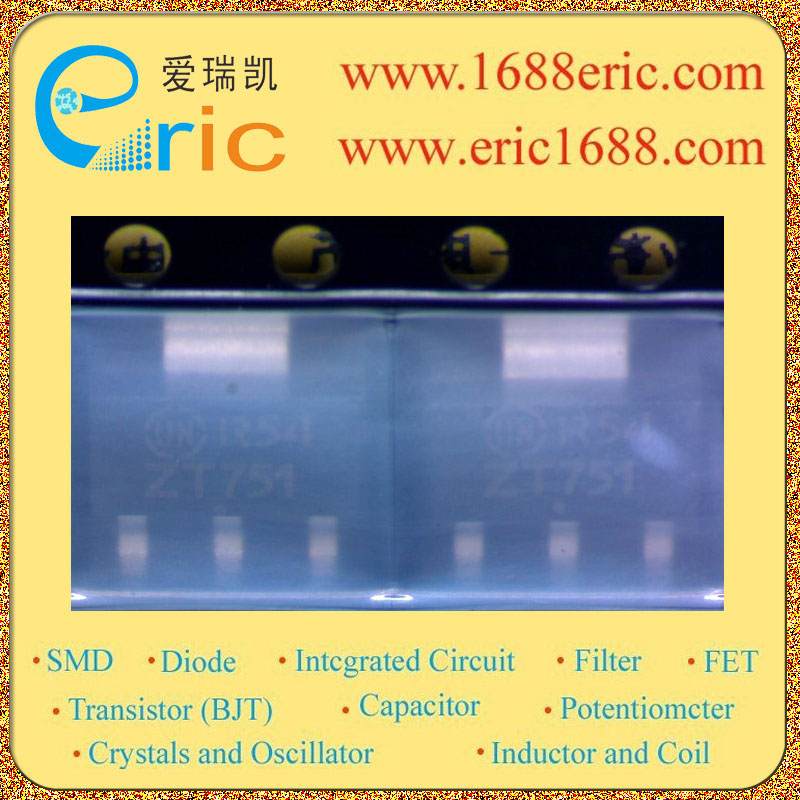

PZT751T1
 型号:  PZT751T1
 标记/丝印/代码/打字:  ZT751
 厂家:  ON
 封装:  SOT-223/TO-261AA
 批号:  05+
 库存数量:  1000
 所属分类:  三极管Bipolar Junction Transistors(BJT)
  PNP
 技术文档PDF:  在线阅读

 在线购买

PZT751T1 ZT751 的参数

集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) -80V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) ?60V
集电极连续输出电流IC Collector Current(IC) -2A
截止频率fT Transtion Frequency(fT) 75MHz
直流电流增益hFE DC Current Gain(hFE) 75
管压降VCE(sat) Collector-Emitter SaturationVoltage ?500mV/-0.5V
耗散功率Pc PoWer Dissipation 800mW/0.8W
Description & Applications PNP Silicon PlanarEpitaxial Transistor This PNP Silicon Epitaxial transistor is designed for use in industrial and consumer applications. The device is housed in the SOT–223 package which is designed for medium power surface mount applications. ? High Current ? The SOT–223 Package can be soldered using wave or reflow. ? NPN Complement is PZT651T1
描述与应用 PNP硅PlanarEpitaxial晶体管 ????这PNP硅外延晶体管设计用于工业和消费类应用。该设备是设在SOT-223封装,是专为中等功率表面贴装应用。 ?高电流 ?SOT-223包装可以使用波或回流焊接。 ?NPN补充型PZT651T1
技术文档PDF下载 在线阅读



 相关型号列表

型号 标记/丝印/代码 厂家 批号 封装 数量 描述 详细资料
PZT2222A P1F ON 05+ SOT-223 26400 三极管Bipolar Junction Transistors(BJT)-NPN 查看
PZT2222A 2222A NXP/PHILIPS 05+NOPB900 SOT-223/SC-73 2300 三极管Bipolar Junction Transistors(BJT)-NPN 查看
PZT2907A 2907A NXP/PHILIPS 05+ SOT-223/TO-261AA 2000 三极管Bipolar Junction Transistors(BJT)-PNP 查看
PZT2907A P2F ON 06+ROHS1400 SOT-223/TO-261AA 5350 三极管Bipolar Junction Transistors(BJT)-PNP 查看
PZT2907A 2907A NXP/PHILIPS 05+NOPB700 SOT-223/TO-261AA 2400 三极管Bipolar Junction Transistors(BJT)-PNP 查看
PZT3904 3904 NXP/PHILIPS 05+nopb750 SOT-223/SC-73 818 三极管Bipolar Junction Transistors(BJT)-NPN 查看
PZT751T1 ZT751 ON 05+ SOT-223/TO-261AA 1000 三极管Bipolar Junction Transistors(BJT)-PNP 查看
PZT751T1 ZT751 ON 05+NOPB150 SOT-223/TO-261AA 630 三极管Bipolar Junction Transistors(BJT)-PNP 查看
PZTA14 PZTA14 NXP/PHILIPS 05+ SOT-223 0 三极管Bipolar Junction Transistors(BJT)-达林顿Darlington-NPN 查看
PZTA14 PZTA14 NXP/PHILIPS 05+ SOT-223 1500 三极管Bipolar Junction Transistors(BJT)-达林顿Darlington-NPN 查看
PZTA42 ZTA42 NXP/PHILIPS 05+ SOT-223/SC-73 15 三极管Bipolar Junction Transistors(BJT)-NPN 查看
PZTA42 PZTA42 SIEMENS 05+ SOT-223 690 三极管Bipolar Junction Transistors(BJT)-NPN 查看
PZTA42 PZTA42 NXP/PHILIPS 05+ SOT-223/SC-73 0 三极管Bipolar Junction Transistors(BJT)-NPN 查看
PZTA42T1 P1D ON 06+ROHS700 SOT-223 1990 三极管Bipolar Junction Transistors(BJT)-NPN 查看
PZTA44 PZTA44 NXP/PHILIPS 11+ROHS SOT-223/SC-73 0 三极管Bipolar Junction Transistors(BJT)-NPN 查看
PZTA44 PZTA44 NXP/PHILIPS 11+ROHS1K SOT-223/SC-73 2400 三极管Bipolar Junction Transistors(BJT)-NPN 查看
PZTA92T1 P2D ON 06+NOPB800 SOT-223/TO-261AA 1460 三极管Bipolar Junction Transistors(BJT)-PNP 查看
PZTA92 PZTA92 INFINEON 09NOPB SOT-223 0 三极管Bipolar Junction Transistors(BJT)-PNP 查看
PZTA42T1 P1D ON 05+ SOT-223 0 三极管Bipolar Junction Transistors(BJT)-NPN 查看
PZTA56 PZTA56 NXP/PHILIPS 05+ SOT-223/TO-261AA 2010 三极管Bipolar Junction Transistors(BJT)-PNP 查看
