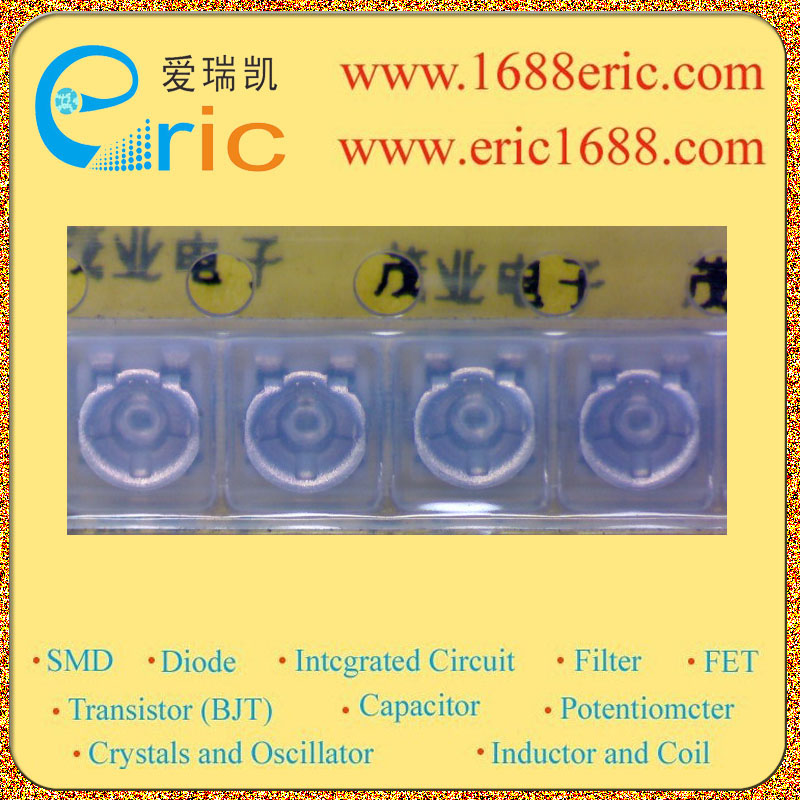

PVG3A201A01R00 22 的参数 |
| 电阻值
Resistance |
200Ω/Ohm |
| 额定功率
Power |
0.25W,1/4W |
| 容差
Tolerance |
±20% |
| 温度系数
Temperature Coefficient |
±150ppm/°C |
| 圈数
Number of Turns |
单圈 Single |
| 调节类型
Adjustment Type |
顶部调节 Top Adjustment |
| 端子类型
Termination Style |
J引线 J Lead |
| Description & Applications |
Trimmer Potentiometers SMD Sealed Type 3mm Size PVG3 Series Features 1. Sealed construction protects the interior from dust and liquid, which achieves stable performance. 2. Driver plate with cross-slot is suitable for automatic adjustment. 3. Rotor with large diameter and deep groove improves driver insertion. 4. 3mm and 4mm land pattern can be used without change. (Gull-wing is suitable for 4mm size land pattern.) 5. Heat resistance performance enables high temperature peak re? ow soldering. 6. Complies with RoHS directive by new Cd free cermet resistive material. Pb free terminals with Sn plating c Applications 1. Small sensors 2. Compact Power Supply 3. Optical Transceiver Module 4. Wireless Radio module 5. Copier 6. Corner Sensor 7. Printer 8. E-Book |
| 描述与应用 |
微调电位器 密封SMD型3mm尺寸PVG3系列 ?特点 1。密封结构可防止灰尘和液体内部，达到性能稳定。 2。十字槽驱动板适合于自动调节。 3。大直径的转子和深沟提高驱动器插入。 4。 3mm和4mm的焊盘图案可用于没有变化。 （鸥翼适合4mm大小的土地格局。） 5。耐热性能，使高温峰值回流焊接。 6。镉的新金属陶瓷电阻材料符合RoHS指令。无铅的镀锡端子 C应用 1。小型传感器 2。紧凑型电源 3。光收发模块 4。无线电模块 5。复印机 6。转角传感器 7。打印机 8。电子图书 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| PVG3A201A01R00 |
22 |
MURATA |
05+ |
3X3-200R |
50 |
电阻Resistor-可调电阻Trimmer Potentiometer |
查看 |
| PVG3A202A01R00 |
23 |
MURATA |
05+ |
3X3-2K |
0 |
电阻Resistor-可调电阻Trimmer Potentiometer |
查看 |
| PVG3A202A01R00 |
23 |
MuRata |
05+ |
3X3-2K |
0 |
电阻Resistor-可调电阻Trimmer Potentiometer |
查看 |
| PVG3A203A01R00 |
24 |
MURATA |
05+ |
3X3-20K |
0 |
电阻Resistor-可调电阻Trimmer Potentiometer |
查看 |
| PVG3A203C01R00 |
24 |
MURATA |
05+ |
3X3-20K |
0 |
电阻Resistor-可调电阻Trimmer Potentiometer |
查看 |
| PVG3A205A01R00 |
26 |
MURATA |
05+ |
3X3-2M |
0 |
电阻Resistor-可调电阻Trimmer Potentiometer |
查看 |
| PVG3A203A01R00 |
24 |
MURATA |
05+ |
3X3-20K |
0 |
电阻Resistor-可调电阻Trimmer Potentiometer |
查看 |
|
|
|
