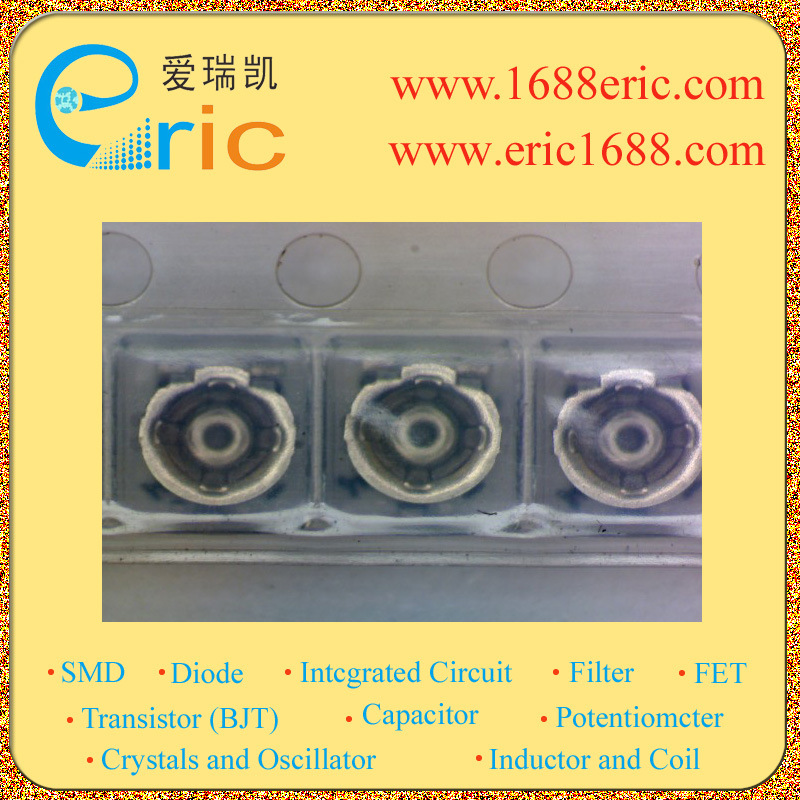

PVA3A103A01R00 14 的参数 |
| 电阻值
Resistance |
10KΩ/Ohm |
| 额定功率
Power |
0.1W,1/10W |
| 容差
Tolerance |
±25% |
| 温度系数
Temperature Coefficient |
±250ppm/°C |
| 圈数
Number of Turns |
单圈 Single |
| 调节类型
Adjustment Type |
顶部调节 Top Adjustment |
| 端子类型
Termination Style |
J引线 J Lead |
| Description & Applications |
Cermet Chip Trimmer Potentiometer RVG3 Series Surface mount with 3mm package achieve excellent performances FEATURES 1. Funnel shaped slot allows for in-process automatic adjustment and it provides superior adjustability 2. 3mm miniature package lead a high density PCB mounting. 3. Plated termination achieve a high resistance to solder leaching. 4. RVG3A08 series is recommended for both reflow and flow soldering method (Need cleaning for flow soldering method.) 5. RVG3S08 series is thin (1.5mm) automatic adjustment with stopper type. APPLICATIONS Camcorders, Video disk players, TFT-LCD TV sets, Headphone stereos, Cordless telephones, Micro-motors, Optical cameras |
| 描述与应用 |
金属陶瓷贴片微调电位器RVG3系列 3mm封装的表面贴装，实现出色的表演 特点 1。漏斗形槽，可在过程中自动 调整并保证优越的可调整 2。 3mm的微型封装导致PCB高密度安装。 3。镀终端实现了高耐焊浸出。 4。 RVG3A08系列推荐用于回流和波峰焊接方式（需要清洗波峰焊接 方法）。 5。系列RVG3S08是薄（1.5毫米）的自动调节塞类型。 应用 摄像机，视频光盘播放机，TFT-LCD电视机， 立体声耳机，无绳电话，微电机， 光学相机 |
