PST9137NR 37 的参数 |
| 受检测电压数
Number of Voltages Monitored |
1 |
| 检测电压/复位阈值电压VDET
Voltage - Threshold |
3.7V |
| 工作电压VIN
Voltage - Supply |
-0.3~10V |
| 高/低有效复位
Reset |
|
| 输出类型
Output Type |
open collection |
| 看门狗
Watchdog |
无 No |
| 功耗Pd
Power Dissipation |
|
| Description & Applications |
?IC for System Reset ?High precision voltage detection ±3% max. ?Super low current consumption ICCH=1.5μA typ. ICCL=1.0μA typ. ?Low operating threshold voltage 0.65V typ. ?Hysteresis voltage is provided as a detect voltage 50mV typ. ?Large output current at the time ON 15mA typ ?Reset circuits for microcomputers, CPUs and MPUs ?Reset circuits for logic circuits ?Battery voltage check circuits ?Back-up power supply switching circuits ?Level detection circuits |
| 描述与应用 |
?IC for System Reset ?High precision voltage detection ±3% max. ?Super low current consumption ICCH=1.5μA typ. ICCL=1.0μA typ. ?Low operating threshold voltage 0.65V typ. ?Hysteresis voltage is provided as a detect voltage 50mV typ. ?Large output current at the time ON 15mA typ ?Reset circuits for microcomputers, CPUs and MPUs ?Reset circuits for logic circuits ?Battery voltage check circuits ?Back-up power supply switching circuits ?Level detection circuits |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |

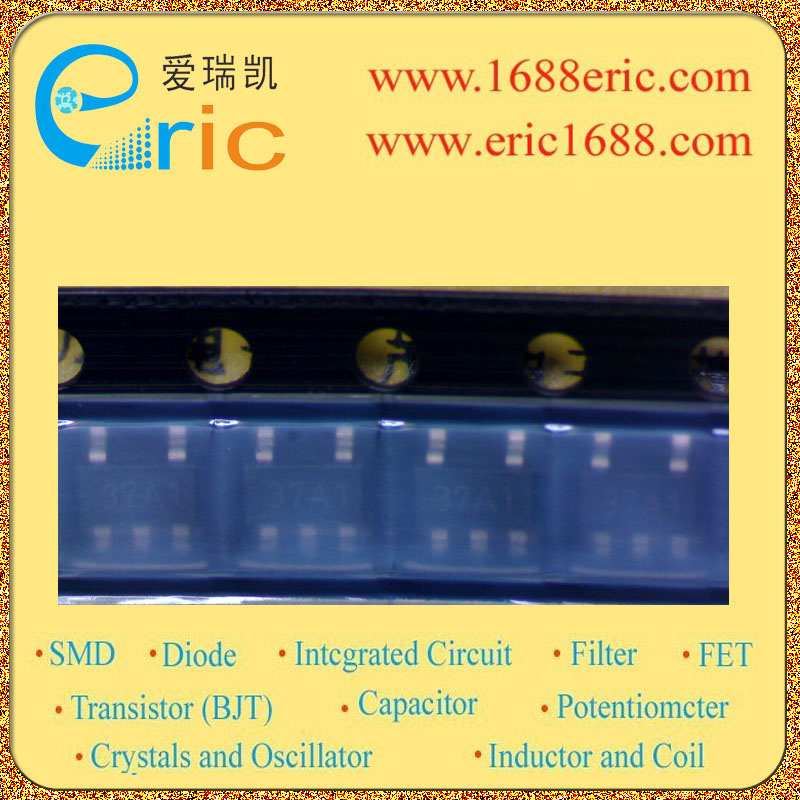

| PST9137NR |
37 |
MITSUMI |
05+ |
SOT-153/SOT-25A/SOT23-5 |
4000 |
电源管理ICPower Management IC/PMIC-电压检测器Supervisor |
查看 |
|
|
|
