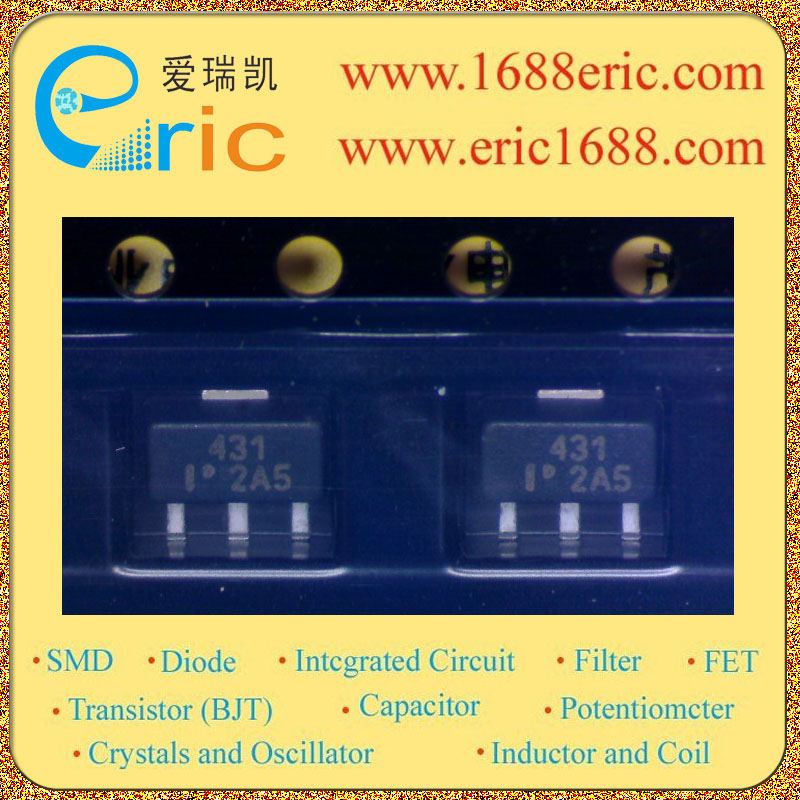

PJ431CY 431 的参数 |
| 参考类型
Reference Type |
|
| 输出电压Vo
Voltage - Output |
2.495V~36V |
| 误差
Tolerance |
±1% |
| 温度系数
Temperature Coefficient |
50ppm/°C |
| 输入电压
Voltage - Input |
2.495V~36V |
| 阴极电流
Current - Cathode |
1mA |
| 输出电流IOUT
Current - Output |
100mA/0.1A |
| Description & Applications |
FEATURES ? Programmable Precision References ? Programmable Output Voltage to 36 Volts ? Voltage Reference Tolerance: PJ431A : ±0.5%, Typ@25°C PJ431 : ±1%, Typ@25°C PJ431B : ±2%, Typ@25°C ? Low Dynamic Output Impedance, 0.22 ? Typical ? Sink Current Capability of 1.0 to 100 mA ? Equivalent Full-Range Temperature Coefficient of 50 ppm/ ℃Typical ? Temperature Compensated for Operation over Full Rated Operating Temperature Range ? Low Output Noise Voltage |
| 描述与应用 |
特点 ?精密参考文献可编程 ?可编程输出电压为36伏特 ?参考电压公差： PJ431A：±0.5％，典型值@25°C PJ431：±1％，标准值@25°C PJ431B：±2％，典型值@25°C ?低动态输出阻抗，0.22Ω典型 ?灌电流能力为1.0至100毫安 ?等效满量程温度系数50 PPM /℃典型 ?在全额定工作温度范围的操作温度补偿 ?低输出噪声电压 |
