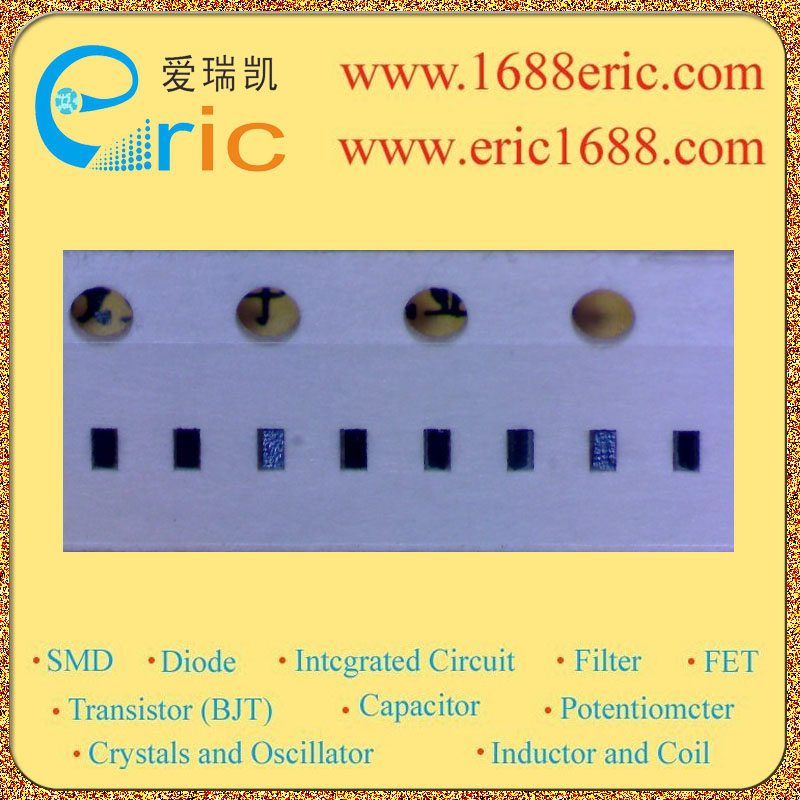

PACDN3401C 的参数 |
| 极性
Polarization |
双向 Bidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
5.9V |
| 反向击穿电压VBR
Breakdown Voltage |
7.5V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
|
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
|
| 额定耗散功率Pd
Power dissipation |
|
| Description & Applications |
Features ? Transient Voltage Suppressor, Single 5V, 0402 SMD ? Single channel voltage suppressor in a surface mount EIA standard 0402-sized device ? Compact 0402 size saves board space and eases layout in area critical applications compared to traditional wire bonded IC packages ? In-system ESD protection to over 30kV contact discharge per IEC 61000-4-2 international ESD standard ? Improved electrical characteristics over P0402FC05C Protek devices ? Less than 10μA leakage at 5.9V |
| 描述与应用 |
特性 ?瞬态电压抑制器，单5V，0402 SMD ?单通道电压抑制器表面安装EIA标准0402大小的装置 ?紧凑的0402尺寸节省电路板空间，并简化在区域布局的关键应用相比传统线保税IC封装 ?在系统ESD保护超过30kV的接触每IEC61000-4-2国际ESD放电标准 ?改进电气特性超过P0402FC05C Protek的设备 ?小于10μA漏电@5.9V |
