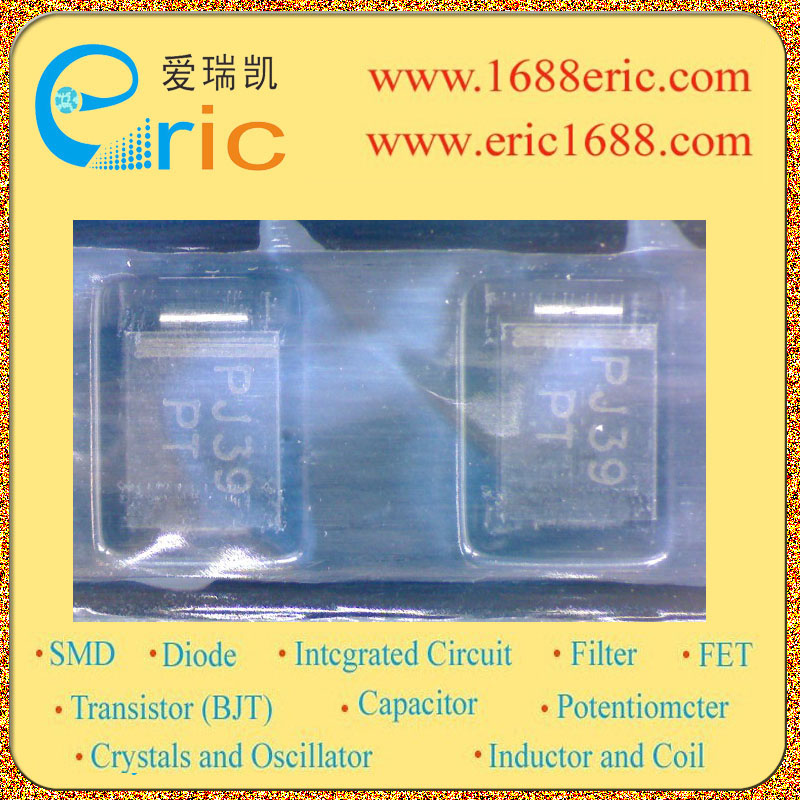

P6SMBJ180ATR PT 的参数 |
| 极性
Polarization |
单向 Unidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
180V |
| 反向击穿电压VBR
Breakdown Voltage |
198V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
600W |
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
2.1A |
| 额定耗散功率Pd
Power dissipation |
|
| Description & Applications |
FEATURES ? SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR POWER 600 Watts ? For surface mounted applications in order to optimize board space. ? Low profile package ? Built-in strain relief ? Glass passivated junction ? Low inductance ? Typical ID less than 1.0μA above 10V ? Plastic package has Underwriters Laboratory Flammability Classification 94V-O ? High temperature soldering : 260°C /10 seconds at terminals ? In compliance with EU RoHS 2002/95/EC directives |
| 描述与应用 |
特性 ?表面贴装型瞬态电压抑制器功率600瓦 ?对于表面安装应用，以优化电路板空间。 ?薄型包装 ?内置应变救灾 ?玻璃钝化结 ?低电感 ?典型的ID小于1.0μA高于10V ?塑料包装已获UL可燃性分类94V-O ?高温焊接：260°C /10秒钟终端 ?符合欧盟RoHS指令2002/95/EC指令 |
