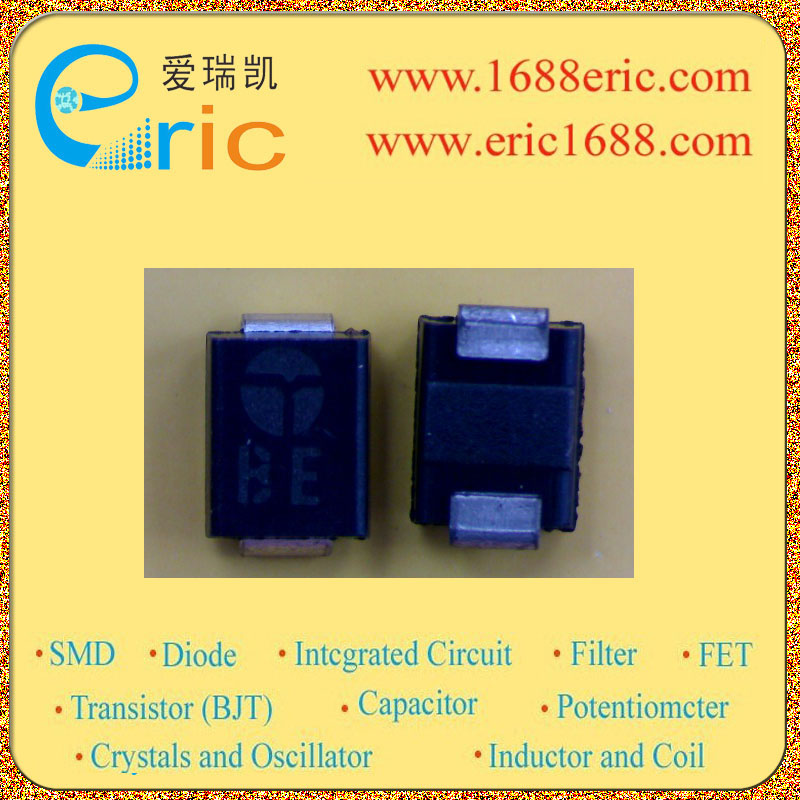

P6SMBJ12CA BE 的参数 |
| 极性
Polarization |
双向 Bidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
12V |
| 反向击穿电压VBR
Breakdown Voltage |
13.3V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
600W |
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
30.2A |
| 额定耗散功率Pd
Power dissipation |
1.5W |
| Description & Applications |
FEATURES ? SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR POWER 600 Watts ? Glass passivated junction ? Stand-off voltage range: 5-170 V ? Uni-directional and bi-directional ? Jedec package designed to meet SM assembly needs ? Low lead inductance ? 100% surge tested |
| 描述与应用 |
特性 ?表面贴装型瞬态电压抑制器功率600瓦 ?玻璃钝化结 ?关断电压范围：5-170 V ?单向和双向 ?JEDEC的包装设计以满足SM 装配需求 ?低引线电感 ?100％浪涌测试 |
