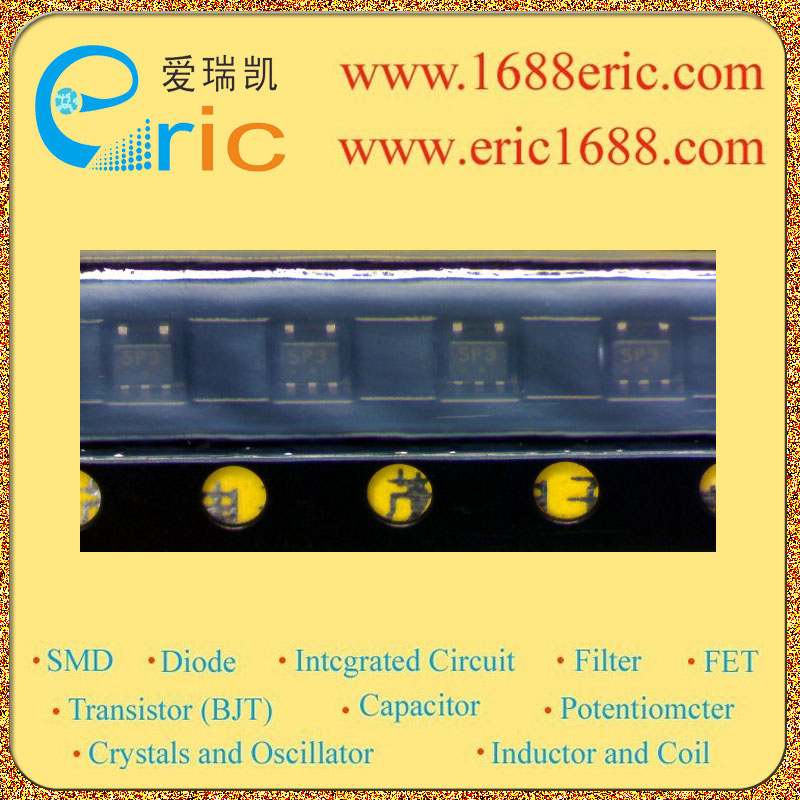

NZQA5V6AXV5T1 5p9 的参数 |
| 极性
Polarization |
单向 Unidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
3.0V |
| 反向击穿电压VBR
Breakdown Voltage |
5.6V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
20W |
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
1.6A |
| 额定耗散功率Pd
Power dissipation |
0.38W/380mW |
| Description & Applications |
Features ? Transient Voltage Suppressors ESD Protection Diode with Low Clamping Voltage ? Small SOT?553 SMT Package ? Stand Off Voltage: 3 V ? Low Leakage Current ? Four Separate Unidirectional Configurations for Protection ? ESD Protection: IEC61000?4?2: Level 4 ESD Protection MILSTD 883C ? Method 3015?6: Class 3 ? Complies to USB 1.1 Low Speed & Full Speed Specifications ? These are Pb?Free Devices |
| 描述与应用 |
特性 ?瞬态电压抑制器 低钳位ESD保护二极管电压 ?采用小型SOT-553表面封装 ?关断电压：3 V ?低漏电流 ?四个单独的单向配置保护 ?ESD保护：IEC61000-4-24级ESD保护 MIL-STD883C - 方法3015-6：3级 ?符合USB1.1低速和全速规格 ?这些都是无铅设备 |
