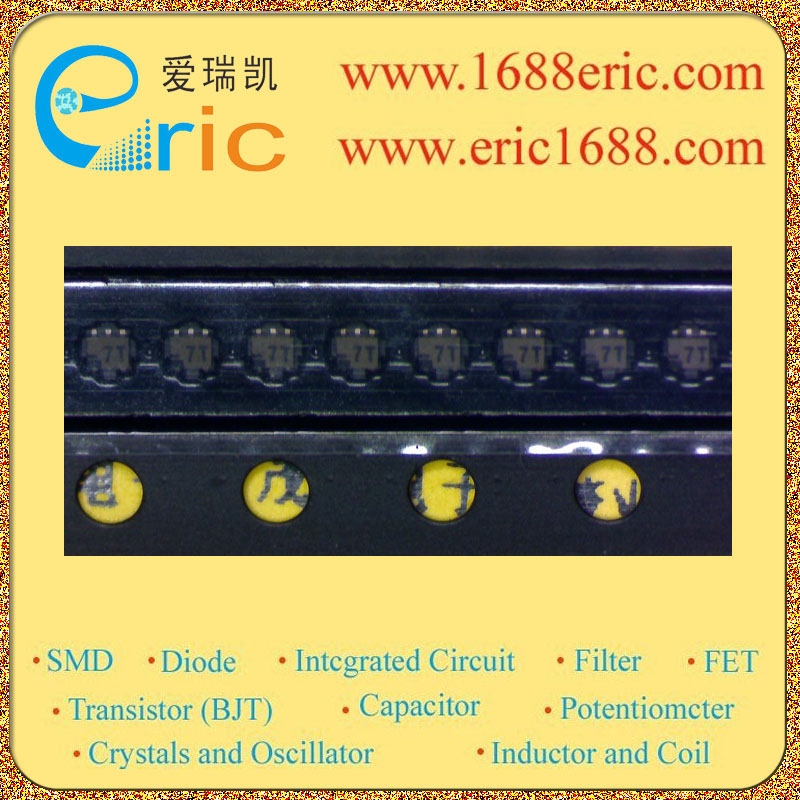

NP043A200A 7T 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
50V/-50V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
50V/-50V |
| 集电极连续输出电流IC
Collector Current(IC) |
80mA/-80mA |
| 截止频率fT
Transtion Frequency(fT) |
150MHz/80MHz |
| 直流电流增益hFE
DC Current Gain(hFE) |
60 |
| 管压降VCE（sat）
Collector-Emitter Saturation Voltage |
250mV-250mV |
| 耗散功率Pc
Power Dissipation |
125mW |
| Description & Applications |
Features ?Silicon NPN Epitaxial Planar Type (Tr1) Silicon PNP Epitaxial Planar Type (Tr2) ?SSS-mini type 6-pin package , reduction of the mounting area and assembly cost by one half |
| 描述与应用 |
特点 ?NPN硅外延平面型（TR1）PNP硅外延平面型（TR2） ?SSS迷你型6引脚封装，安装面积和装配成本减少一半 |
