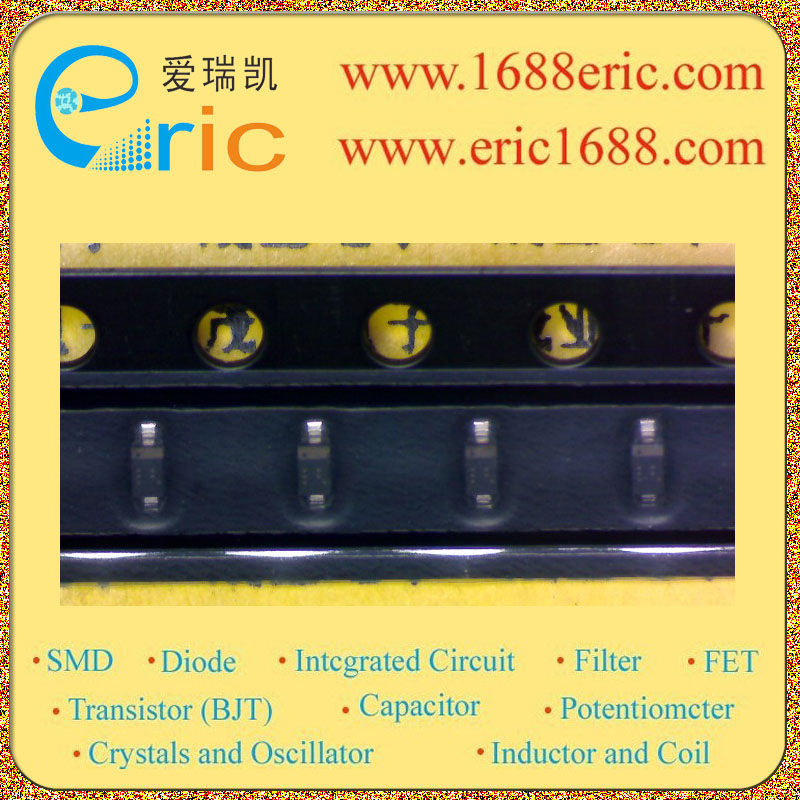

NNCD4.3C-T1 4.3 的参数 |
| 极性
Polarization |
单向 Unidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
|
| 反向击穿电压VBR
Breakdown Voltage |
4.3V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
85W |
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
|
| 额定耗散功率Pd
Power dissipation |
0.15W/150mW |
| Description & Applications |
FEATURES ? ELECTROSTATIC DISCHARGE NOISE CLIPPING DIODES(150 mW TYPE) ? Based on the electrostatic discharge immunity test (IEC1000-4-2), the product assures the minimum endurance of 30 kV. ? Based on the reference supply of the set, the product achieves a series over a wide range (15 product name lined up). APPLICATIONS ? External interface circuit E.S.D protection. ? Circuits for Waveform clipper, Surge absorber. |
| 描述与应用 |
特点 ?静电放电噪声削波二极管（150毫瓦式） ?基于静电放电抗扰度试验（IEC1000-4-2），产品保证30千伏最小耐力。 ?基于基准电源的设置，产品达到一系列在很宽的范围内（15个产品名称排队）。 应用 ?外部接口电路E.S.D保护。 ?波形剪，浪涌吸收电路。 |
