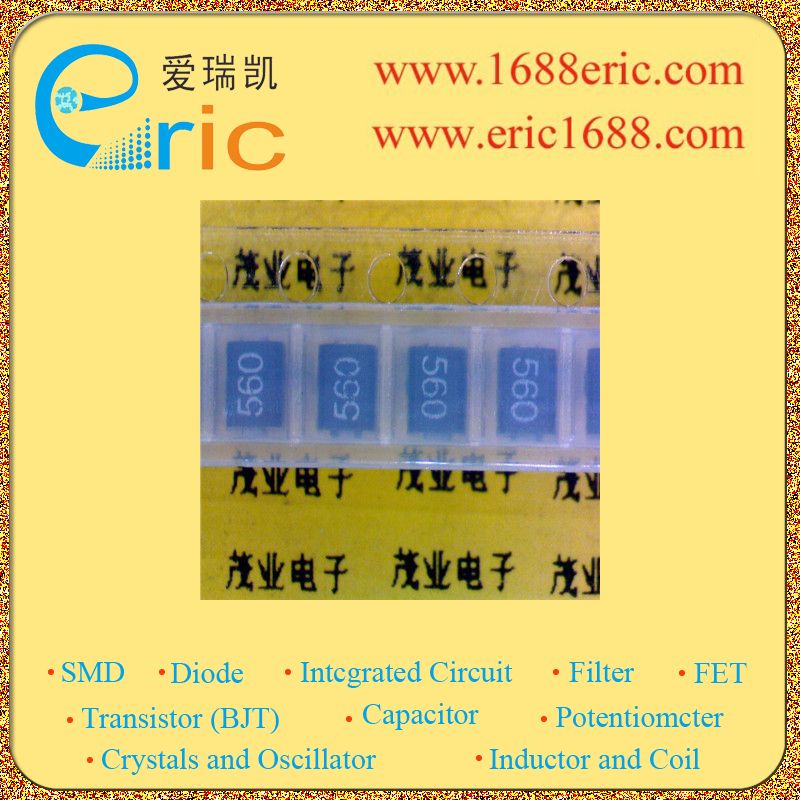

NL322522T-560K-S 560K 的参数 |
| 电感值
Inductance |
56UH |
| 误差
Tolerance |
±10% |
| 额定电流
Current Rating |
55mA |
| 饱和电流
Current - Saturation |
|
| 不同频率时的Q值
Q @ Frequency |
30 @ 2.52MHz |
| 自振谐频率SRF
Frequency - Self Resonant |
13MHz |
| DC电阻DCR
DC Resistance (DCR) |
8Ω/Ohm |
| 屏蔽
Shielding |
屏蔽 Shielded |
| Description & Applications |
NL Series NL3225 Type FEATURES ? The NL series are available in 5 form factors ranging from 2016 to 5650. ? Utilizing a miniaturized winding structure, these products provide high Q characteristics. ? Inductance tolerance is ±5 percent. |
| 描述与应用 |
NL系列NL3225类型 特点 NL系列5种形式因素，从2016到5650不等。 ?利用微型绕组结构，具有高Q特性。 ?电感容差为±5％。 |
