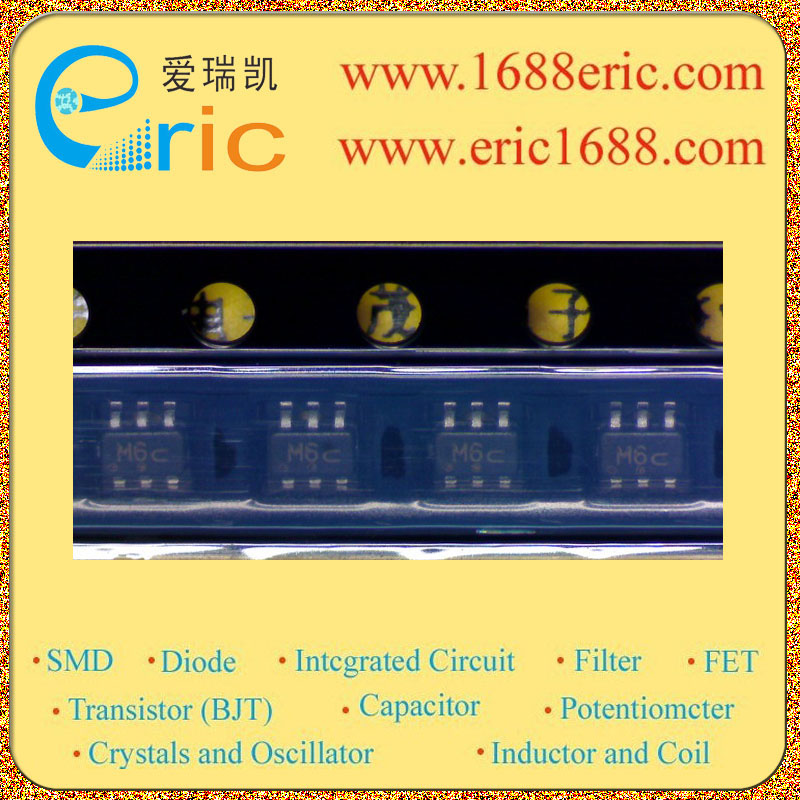

NL27WZU04DFT2 M6 的参数 |
| 逻辑类型
Logic Type |
反相器 Inverter |
| 电路数
Number of Circuits |
2 |
| 输入数
Number of Inputs |
1 |
| 电源电压Vcc
Voltage - Supply |
1.65V~5.5V |
| 静态电流Iq
Current - Quiescent (Max) |
1uA |
| 输出高，低电平电流
Current - Output High, Low |
-16mA，16mA |
| 低逻辑电平
Logic Level - Low |
0.1V~0.55V |
| 高逻辑电平
Logic Level - High |
1.29V~3.8V |
| 传播延迟时间@Vcc，CL
Max Propagation Delay @ V, Max CL |
5.6ns @ 5V，50pF |
| Description & Applications |
Features Dual Unbuffered Inverter Pb?Free Package is Available Designed for 1.65 V to 5.5 V VCC Operation Unbuffered for Crystal Oscillator and Analog Applications LVCMOS Compatible Source/Sink 16 mA @ 4.5 V VCC Near Zero Static Supply Current Substantially Reduces System Power Requirements Chip Complexity: FET = 72; Equivalent Gate = 18 |
| 描述与应用 |
特性 双无缓冲逆变器 无铅包装是可用 为1.65 V至5.5 V的VCC运作 无缓冲晶体振荡器和模拟应用 路LVCMOS兼容 源/汇16 mA@4.5 V VCC 近零静态电流大幅度降低了系统电源要求 芯片的复杂性：FET=72;等效门= 18 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| NL27WZU04DFT2 |
M6 |
ON |
06+10.5KROHS |
SC/88/SOT/363/SC70/6/TSSOP6 |
10900 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| NL27WZU04DFT2G |
M6 |
ON |
06NOPB |
SC/88/SOT/363/SC70/6/TSSOP6 |
9000 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
|
|
|
