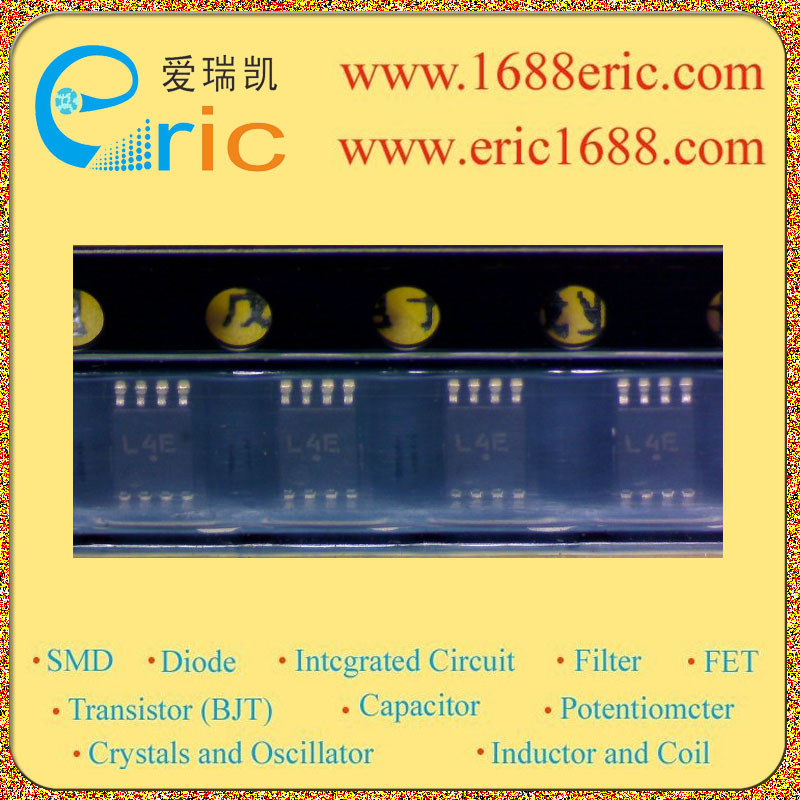

NL27WZ32US L4 的参数 |
| 逻辑类型
Logic Type |
或门 OR Gate |
| 电路数
Number of Circuits |
2 |
| 输入数
Number of Inputs |
2 |
| 电源电压Vcc
Voltage - Supply |
1.65V~5.5V |
| 静态电流Iq
Current - Quiescent (Max) |
1uA |
| 输出高，低电平电流
Current - Output High, Low |
-32mA，32mA |
| 低逻辑电平
Logic Level - Low |
0.1V~0.55V |
| 高逻辑电平
Logic Level - High |
1.55V~3.8V |
| 传播延迟时间@Vcc，CL
Max Propagation Delay @ V, Max CL |
3.7ns @ 5V，50pF |
| Description & Applications |
Features Dual 2?Input OR Gate Extremely High Speed: tPD 2.5 ns (typical) at VCC = 5 V Designed for 1.65 V to 5.5 V VCC Operation Over Voltage Tolerant Inputs LVTTL Compatible ? Interface Capability With 5 V TTL Logic with VCC = 3 V LVCMOS Compatible 24 mA Balanced Output Sink and Source Capability Near Zero Static Supply Current Substantially Reduces System Power Requirements Replacement for NC7WZ32 Chip Complexity: FET = 120 Pb?Free Package is Available |
| 描述与应用 |
特性 双2输入或门 极高的速度：TPD2.5 ns（典型）在VCC= 5 V 为1.65 V至5.5 V的VCC运作 过电压容限输入 VCC= 3 V与5 V TTL逻辑接口功能与LVTTL的兼容 - 路LVCMOS兼容 24 mA平衡输出库和源能力 近零静态电流大幅度降低了系统电源要求 更换NC7WZ32 芯片的复杂性：FET= 120 无铅包装是可用 |
