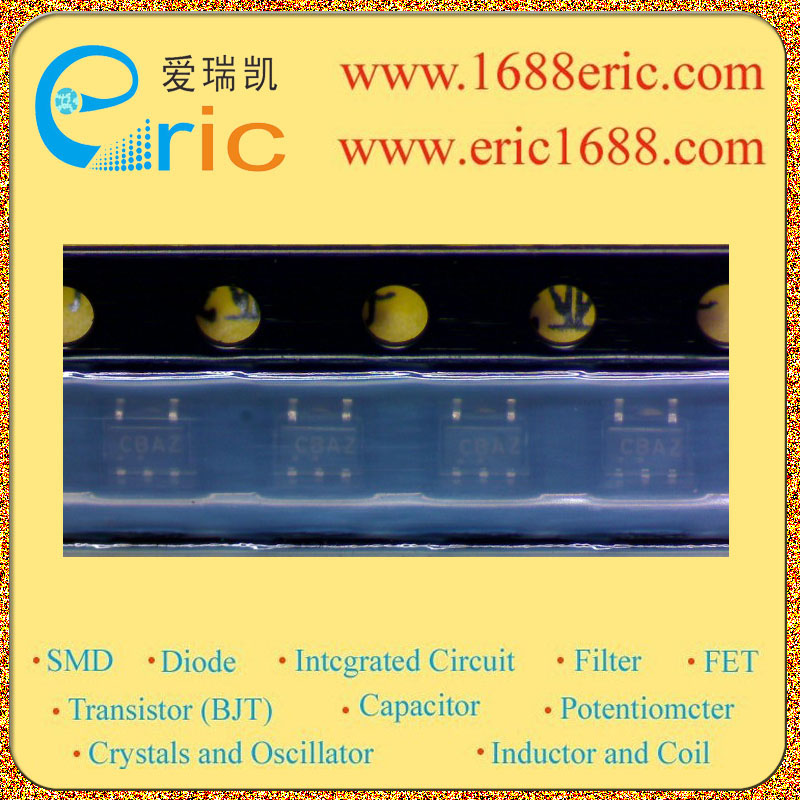

NCS2200SQ2T2 CBAZ 的参数 |
类型
Type |
通用 General Purpose |
元件数
Number of Elements |
1 |
输出类型
Output Type |
补充型,满摆幅 Complementary, Rail-to-Rail |
电源电压,单/双 (±)
Voltage - Supply, Single/Dual (±) |
0.85 V ~ 6 V |
输入失调电压(最大值)
Voltage - Input Offset (Max) |
5mV |
输入偏置电流(最大值)
Current - Input Bias (Max) |
1pA |
输出电流(典型值)
Current - Output (Typ) |
|
静态电流(最大值)
Current - Quiescent (Max) |
17μA |
CMRR,PSRR(典型值)
CMRR, PSRR (Typ) |
70dB CMRR,80dB PSRR |
传播延迟(最大值)
Propagation Delay (Max) |
1.1us |
滞后
Hysteresis |
20mV |
Description & Applications |
FEATURES ? Low Voltage Comparators ? Operating Voltage of 0.85 V to 6.0 V ? Rail?to?Rail Input/Output Performance ? Low Supply Current of 10 A ? No Phase Inversion with Overdriven Input Signals ? Glitchless Transitioning in or out of Tri?State Mode ? Complementary or Open Drain Output Configuration ? Available with the Enable Function ? Internal Hysteresis ? Propagation Delay of 1.1 s ? Pb?Free Packages are Available Typical Applications ? Single Cell NiCd/NiMH Battery Powered Applications ? Cellular Telephones ? Alarm and Security Systems ? Personal Digital Assistants |
描述与应用 |
特点 ?低电压比较器 ?工作电压为0.85 V至6.0 V ?轨到轨输入/输出性能 ?低电源电流为10 过驱动输入信号没有相位反转 ?毛刺转换或三态模式 ?互补或开漏输出配置 ?启用功能 ?内部迟滞 ?传播延迟为1.1? ?无铅包可用 典型应用 ?单节镍镉/镍氢电池供电的应用 ?蜂窝电话 ?报警和安全系统 ?个人数字助理(PDA) |
