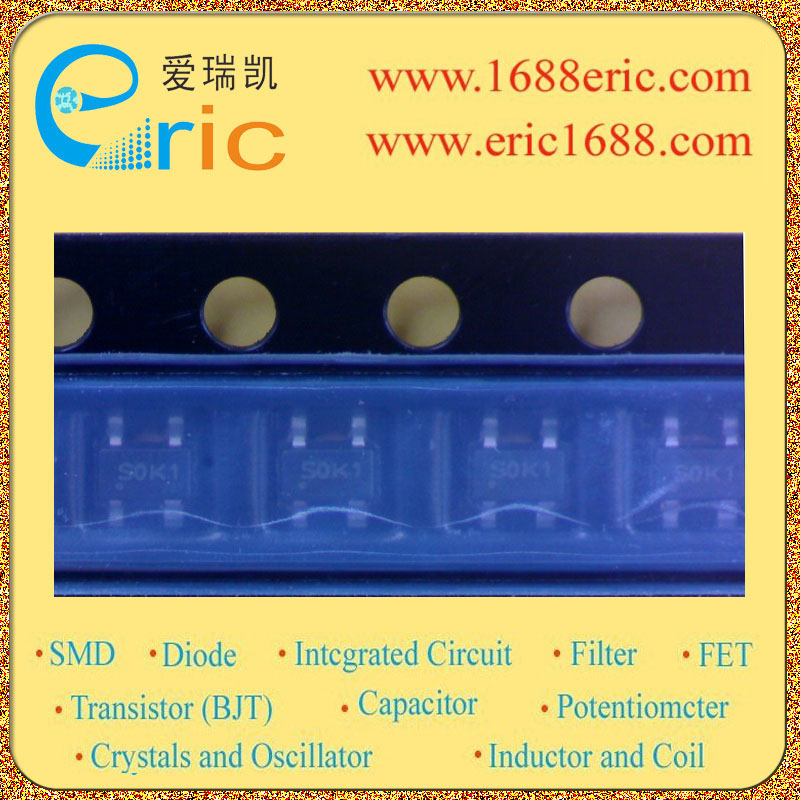

NCP304HSQ29T1 SOK 的参数 |
| 受检测电压数
Number of Voltages Monitored |
1 |
| 检测电压/复位阈值电压VDET
Voltage - Threshold |
2.9V |
| 工作电压VIN
Voltage - Supply |
12V |
| 高/低有效复位
Reset |
高 Active High |
| 输出类型
Output Type |
push pull |
| 看门狗
Watchdog |
无 No |
| 功耗Pd
Power Dissipation |
|
| Description & Applications |
?Voltage Detector Series ?Quiescent Current of 1.0 μA Typical ?High Accuracy Under Voltage Threshold of 2.0% ?Wide Operating Voltage Range of 0.8 V to 10 V ?Complementary or Open Drain Reset Output ?Active Low or Active High Reset Output ? Microprocessor Reset Controller ? Low Battery Detection ? Power Fail Indicator ? Battery Backup Detection |
| 描述与应用 |
?电压检测器系列 ?典型静态电流为1.0μA ?高精度欠压阈值2.0％ ?宽工作电压范围为0.8 V至10 V ?互补或开漏复位输出 ?低电平或高电平有效复位输出 ?微处理器复位控制器 ?电池低电压检测 ?电源故障指示器 ?电池备份检测 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| NCP304HSQ29T1 |
SOK |
ON |
05+ |
SOT-343/SC-82AB/SC70-4 |
700 |
电源管理ICPower Management IC/PMIC-电压检测器Supervisor |
查看 |
| NCP304HSQ45T1 |
SPA |
ON |
04+ |
SOT-343/SC-82AB/SC70-4 |
5600 |
电源管理ICPower Management IC/PMIC-电压检测器Supervisor |
查看 |
| NCP304HSQ47T1 |
SP |
ON |
05+ |
SOT-343/SC-82AB/SC70-4 |
6500 |
电源管理ICPower Management IC/PMIC-电压检测器Supervisor |
查看 |
| NCP304LSQ45T1 |
SFSE |
ON |
04+ |
SOT-343/SC-82AB/SC70-4 |
1070 |
电源管理ICPower Management IC/PMIC-电压检测器Supervisor |
查看 |
| NCP304LSQ47T1 |
SFQY |
ON |
04+ |
SOT-343/SC-82AB/SC70-4 |
2050 |
电源管理ICPower Management IC/PMIC-电压检测器Supervisor |
查看 |
|
|
|
