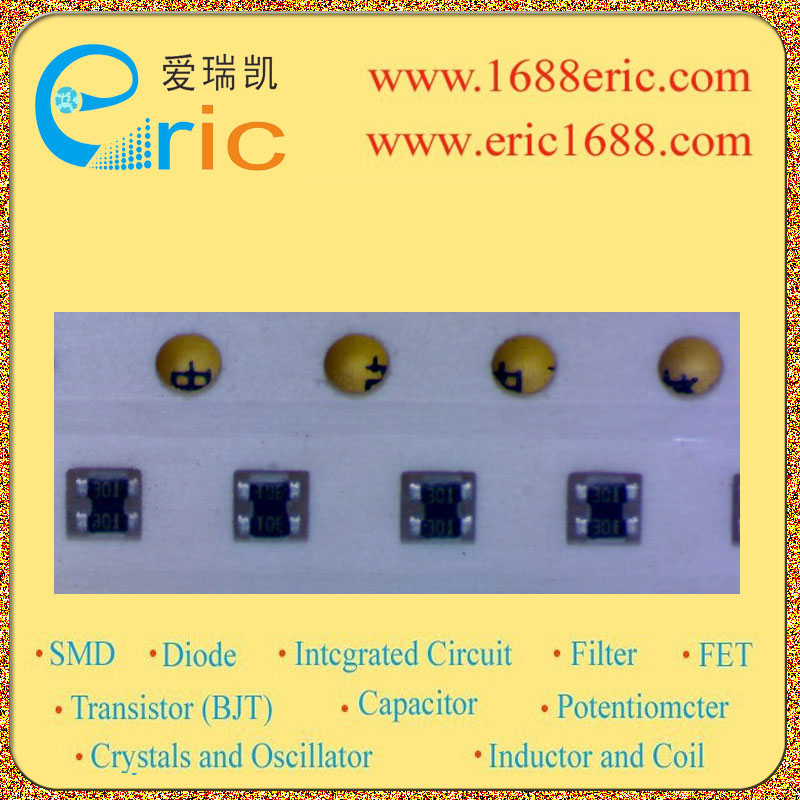

MNR12EOAJ301 的参数 |
| 电阻值
Resistance |
300Ω/Ohm |
| 误差
Tolerance |
±5% |
| 电阻器数
Number of Resistors |
2 |
| 引脚数
Number of Pins |
4 |
| 功耗
Power Dissipation
|
62.5mW |
| Description & Applications |
Chip resistor networks MNR12 (0603×2 size) Features 1) Convex electrodes Easy to check the fillet after soldering is finished. 2) Small, light, rectangular 2-chip network Area ratio is 65% smaller than that of MNR32, while weight ratio has been cut 75%. 3) High-density mounting Can be mounted even more densely than two 0603 chips (MCR03), and mounting costs are lower. 4) Compatible with a wide range of mounting equipment. Squared corners make it excellent for mounting using image recognition devices. 5) ROHM resistors have approved ISO-9001 certification. |
| 描述与应用 |
片式电阻网络 MNR12（0603×2尺寸） 特点 1）凸电极 易焊接完成后，检查圆角。 2）体积小，重量轻，长方形2芯片的网络 3）高密度安装 可以更密集安装超过两个0603芯片（MCR03），和安装成本较低。 4）具有广泛的安装设备兼容。 5）ROHM电阻已通过ISO-9001认证。 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| MNR12EOABJ103 |
103 |
ROHM |
05+ |
2(0603)-10K |
4500 |
电阻Resistor-排阻Resistor Network/Array |
查看 |
| MNR12EOABJ471 |
|
ROHM |
05+ |
2(0603)-470R |
10000 |
电阻Resistor-排阻Resistor Network/Array |
查看 |
| MNR12EOAJ301 |
|
ROHM |
05+ |
2(0603)-300R |
4000 |
电阻Resistor-排阻Resistor Network/Array |
查看 |
| MNR12EOAJ471 |
|
ROHM |
05+ |
2(0603)-470R |
9500 |
电阻Resistor-排阻Resistor Network/Array |
查看 |
| MNR14EOAJ200 |
|
ROHM |
05+ |
4(0603) |
0 |
电阻Resistor-排阻Resistor Network/Array |
查看 |
| MNR14F0ABJ103 |
|
ROHM |
05+ |
4(0603) |
0 |
电阻Resistor-排阻Resistor Network/Array |
查看 |
| MNR14HOABJ103 |
|
ROHM |
05+ |
4(0603)-10K |
0 |
电阻Resistor-排阻Resistor Network/Array |
查看 |
| UUR1C331MNR1GS |
6.3V491UF |
J at |
05+ |
8M |
200 |
电容Capacitor-贴片电解电容Aluminum Capacitor |
查看 |
| UUX1C221MNR1GS |
6.3V511UF |
NICHICON |
05+ |
10M |
360 |
电容Capacitor-贴片电解电容Aluminum Capacitor |
查看 |
|
|
|
