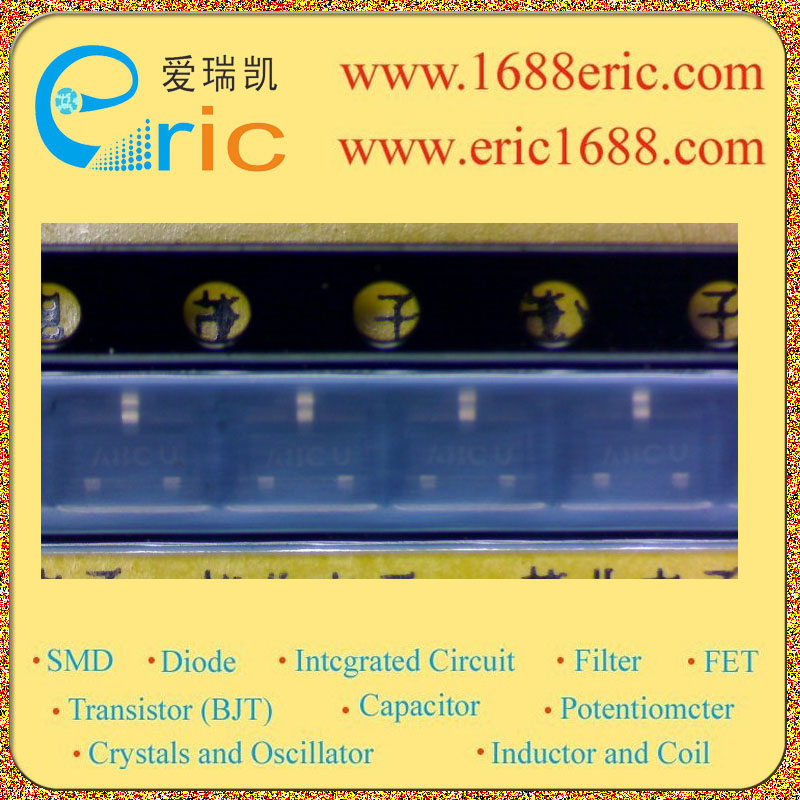

MMUN2113LT1G
 型号:  MMUN2113LT1G
 标记/丝印/代码/打字:  A6C
 厂家:  ON
 封装:  SOT-23/SC-59
 批号:  06+
 库存数量:  0
 所属分类:  三极管Bipolar Junction Transistors(BJT)
  带阻尼PNPPNP Bipolar Digital Transistor (BRT)
 技术文档PDF:  在线阅读

 在线购买

MMUN2113LT1G A6C 的参数

集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) -50V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) -50V
集电极连续输出电流IC Collector Current(IC) -100mA/-0.1A
基极输入电阻R1 Input Resistance(R1) 47KΩ/Ohm
基极-发射极输入电阻R2 Base-Emitter Resistance(R2) 47KΩ/Ohm
电阻比(R1/R2) Resistance Ratio 1
直流电流增益hFE DC Current Gain(hFE) 140
截止频率fT Transtion Frequency(fT)
耗散功率Pc Power Dissipation 0.4W/400mW
Description & Applications FEATURES ?bias resistor transistors ?PNP Silicon Surface Mount Transistors with Monolithic Bias Resistor Network ?Simplifies Circuit Design ?Reduces Board Space ?Reduces Component Count ?The SOT-23 package can be soldered using wave or reflow. The modified gull-winged leads absorb thermal stress during soldering eliminating the possibility of damage to the die. ?Available in 8 mm embossed tape and reel. Use the Device Number to order the 7 inch/3000 unit reel. Replace “T1” with “T3” in the Device Number to order the 13 inch/10,000 unit reel
描述与应用 特点 ?偏置电阻晶体管 ?PNP硅表面贴装晶体管与单片偏置电阻网络 ?简化电路设计 ?缩小板级空间 ?减少元件数量SOT-23封装,可以使用波或回流焊接。该改性鸥翅引线在焊接热应力吸收消除电路小片损坏的可能性。 ?可在8 mm压纹带和卷轴。使用设备号到责令7 inch/3000的单位卷轴。替换“T1”与“T3”设备编号责令13 inch/10的000个单位卷轴
技术文档PDF下载 在线阅读



 相关型号列表

型号 标记/丝印/代码 厂家 批号 封装 数量 描述 详细资料
MMUN2113LT1G A6C ON 06+ SOT-23/SC-59 0 三极管Bipolar Junction Transistors(BJT)-带阻尼PNPPNP Bipolar Digital Transistor (BRT) 查看
MMUN2114LT1 A6D ON 02+ SOT-23/SC-59 1200 三极管Bipolar Junction Transistors(BJT)-带阻尼PNPPNP Bipolar Digital Transistor (BRT) 查看
MMUN2112LT1G A6B ON 07NOPB SOT-23/SC-59 7000 三极管Bipolar Junction Transistors(BJT)-带阻尼PNPPNP Bipolar Digital Transistor (BRT) 查看
MMUN2112LT1 A6B ON 08+NOPB SOT-23/SC-59 0 三极管Bipolar Junction Transistors(BJT)-带阻尼PNPPNP Bipolar Digital Transistor (BRT) 查看
MMUN2116LT1 A6F ON 05+ SOT-23/SC-59 0 三极管Bipolar Junction Transistors(BJT) 查看
