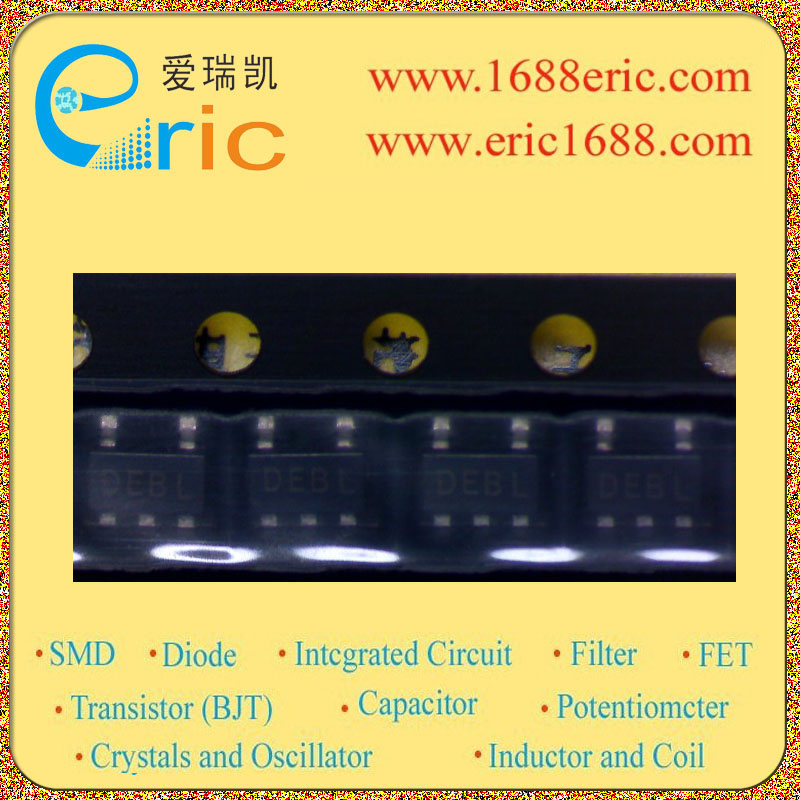

MM1385ENRE
 型号:  MM1385ENRE
 标记/丝印/代码/打字:  DE
 厂家:  MITSUMI
 封装:  SOT-153/SOT-25A/SOT23-5
 批号:  05+NOPB500
 库存数量:  43500
 所属分类:  电源管理ICPower Management IC/PMIC
  电压调整器/稳压Voltage Regulator
    低压差LDOLow Dropout (LDO)
 技术文档PDF:  在线阅读

 在线购买

MM1385ENRE DE 的参数

电路数量 Number of Regulators 1
输入电压VIN Voltage - Input 1.8~12V
输出电压VOUT Voltage - Output 3.3V
输出电流Io Current - Output 50mA
最大压降VDO Voltage - Dropout 100mV/0.1V
带使能脚EN/CE(ON/OFF功能) With Enable Pin 有 Yes
最大耗散功率Pd Power dissipation 150mW/0.15W
Description & Applications Microminiature Low-Power Consumption Low-Saturation Regulator ;? No-load input current 95μA typ. ?I/O voltage difference 0.1V typ.(Io=50mA) ? Ripple rejection ratio 70dB typ. ?Output current 150mA max. ?Output noise voltage 35μVrms typ. ?Output on/off control High ON, Low OFF
描述与应用 超小型低功耗低饱和稳压器;?无负载输入电流95μA(典型值) ?I / O电压差0.1V(典型值)(IO=50毫安) 纹波抑制比70dB的典型 ?输出电流最大150mA。 ?输出噪声电压典型35μVrms ?输出开/关控制高开,关低
技术文档PDF下载 在线阅读



 相关型号列表

型号 标记/丝印/代码 厂家 批号 封装 数量 描述 详细资料
MM1385ANRE DA MITSUMI 05+ SOT-153/SOT-25A/SOT23-5 5500 电源管理ICPower Management IC/PMIC-电压调整器/稳压Voltage Regulator-低压差LDOLow Dropout (LDO) 查看
MM1385BNRE DBK MITSUMI 05+ SOT-153/SOT-25A/SOT23-5 8600 电源管理ICPower Management IC/PMIC-电压调整器/稳压Voltage Regulator-低压差LDOLow Dropout (LDO) 查看
MM1385CNRE DC MITSUMI 05+ SOT-153/SOT-25A/SOT23-5 150 电源管理ICPower Management IC/PMIC-电压调整器/稳压Voltage Regulator-低压差LDOLow Dropout (LDO) 查看
MM1385DNRE DD MITSUMI 05+ SOT-153/SOT-25A/SOT23-5 9200 电源管理ICPower Management IC/PMIC-电压调整器/稳压Voltage Regulator-低压差LDOLow Dropout (LDO) 查看
MM1385ENLE DE MITSUMI 05+ SOT-153/SOT-25A/SOT23-5 3500 电源管理ICPower Management IC/PMIC-电压调整器/稳压Voltage Regulator-低压差LDOLow Dropout (LDO) 查看
MM1385ENRE DE MITSUMI 05+NOPB500 SOT-153/SOT-25A/SOT23-5 43500 电源管理ICPower Management IC/PMIC-电压调整器/稳压Voltage Regulator-低压差LDOLow Dropout (LDO) 查看
MM1385FNRE DF MITSUMI 05+ SOT-153/SOT-25A/SOT23-5 600 电源管理ICPower Management IC/PMIC-电压调整器/稳压Voltage Regulator-低压差LDOLow Dropout (LDO) 查看
MM1385GNLE DY MITSUMI 05+ SOT-153/SOT-25A/SOT23-5 1200 电源管理ICPower Management IC/PMIC-电压调整器/稳压Voltage Regulator-低压差LDOLow Dropout (LDO) 查看
MM1385GNRE DY MITSUMI 05+ SOT-153/SOT-25A/SOT23-5 3000 电源管理ICPower Management IC/PMIC-电压调整器/稳压Voltage Regulator-低压差LDOLow Dropout (LDO) 查看
MM1385HNRE DHH7 MITSUMI 05+ SOT-153/SOT-25A/SOT23-5 0 电源管理ICPower Management IC/PMIC-电压调整器/稳压Voltage Regulator-低压差LDOLow Dropout (LDO) 查看
MM1385HNRE DH MITSUMI 05+NOPB2800 SOT-153/SOT-25A/SOT23-5 37800 电源管理ICPower Management IC/PMIC-电压调整器/稳压Voltage Regulator-低压差LDOLow Dropout (LDO) 查看
MM1385KNRE DKKL MITSUMI 05+ SOT-153/SOT-25A/SOT23-5 0 电源管理ICPower Management IC/PMIC-电压调整器/稳压Voltage Regulator-低压差LDOLow Dropout (LDO) 查看
MM1385KNRE DK MITSUMI 05+ SOT-153/SOT-25A/SOT23-5 13600 电源管理ICPower Management IC/PMIC-电压调整器/稳压Voltage Regulator-低压差LDOLow Dropout (LDO) 查看
MM1385LNRE DL MITSUMI 05+ SOT-153/SOT-25A/SOT23-5 2900 电源管理ICPower Management IC/PMIC-电压调整器/稳压Voltage Regulator-低压差LDOLow Dropout (LDO) 查看
MM1385NNRE DN MITSUMI 05+ SOT-153/SOT-25A/SOT23-5 17000 电源管理ICPower Management IC/PMIC-电压调整器/稳压Voltage Regulator-低压差LDOLow Dropout (LDO) 查看
MM1385QNRE DQ MITSUMI 05+ SOT-153/SOT-25A/SOT23-5 800 电源管理ICPower Management IC/PMIC-电压调整器/稳压Voltage Regulator-低压差LDOLow Dropout (LDO) 查看
MM1385XNRE BY MITSUMI 05+ SOT-153/SOT-25A/SOT23-5 2900 电源管理ICPower Management IC/PMIC-电压调整器/稳压Voltage Regulator-低压差LDOLow Dropout (LDO) 查看
