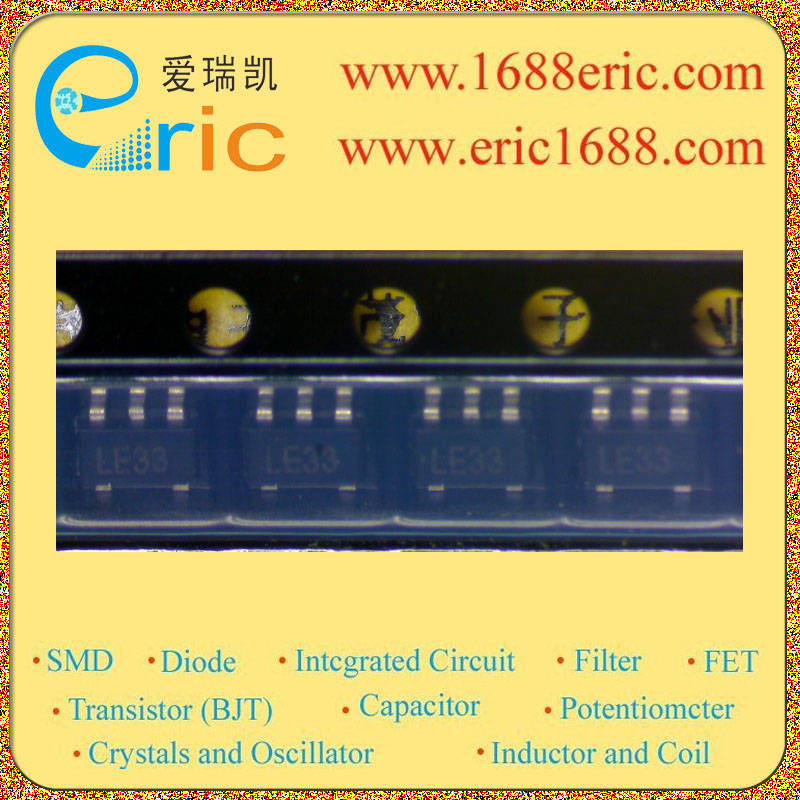

MIC5207-3.3BM5 LE33 的参数 |
| 电路数量
Number of Regulators |
1 |
| 输入电压VIN
Voltage - Input |
2.5~16V |
| 输出电压VOUT
Voltage - Output |
3.3V |
| 输出电流Io
Current - Output |
180mA/0.18A |
| 最大压降VDO
Voltage - Dropout |
165mV/0.165V |
| 带使能脚EN/CE(ON/OFF功能)
With Enable Pin |
有 Yes |
| 最大耗散功率Pd
Power dissipation |
|
| Description & Applications |
180mA Low-Noise LDO Regulator ;? High output voltage accuracy ? Guaranteed 150mA output ? Ultra-low-noise output (8-pin versions) ? Low quiescent current ? Extremely tight load and line regulation ? Very low temperature coefficient ? Current and thermal limiting ? Reversed-battery protection ? “Zero” off-mode current ? Logic-controlled electronic enable ? Cellular telephones ? Laptop, notebook, and palmtop computers ? Battery-powered equipment ? PCMCIA VCC and VPP regulation/switching ? High-efficiency linear power supplies |
| 描述与应用 |
180毫安低噪声LDO稳压器;?高输出电压精度 ?保证150mA输出 ?超低噪声输出（8引脚版本） ?低静态电流 ?极其严格的负载和线路调节 ?非常低的温度系数 ?电流和热限制 ?反相电池保护 ?“零”关机模式电流 ?逻辑控制的电子启用 ?蜂窝电话 ?笔记本电脑，笔记本电脑，掌上型电脑 ?电池供电设备 ?PCMCIA VCC和VPP调节/开关 ?高效率线性电源供应器 |
