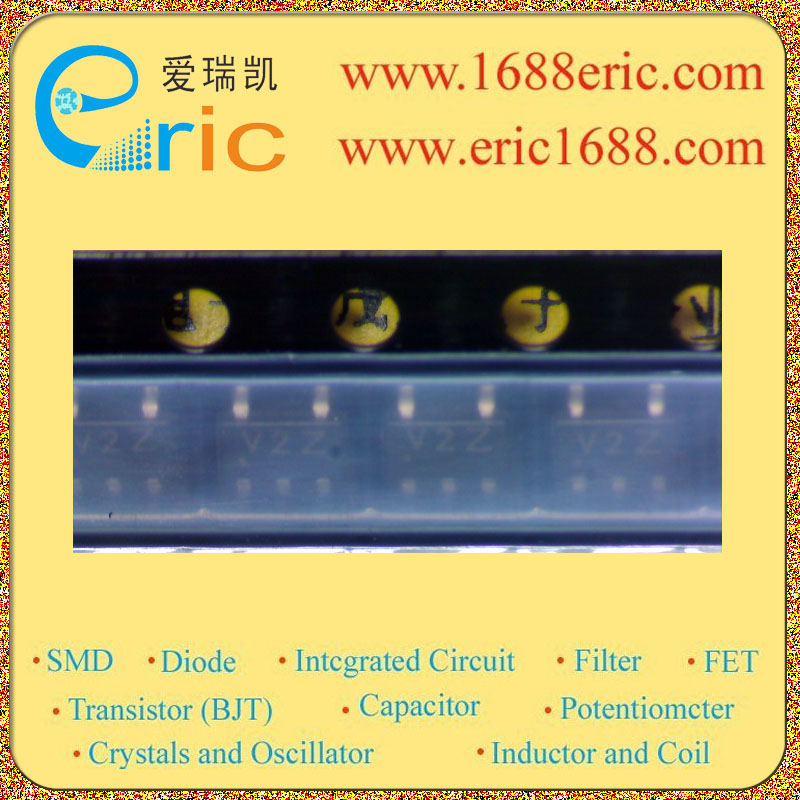

MC74VHC1G08DTT1 V2 的参数 |
| 逻辑类型
Logic Type |
与门 AND Gate |
| 电路数
Number of Circuits |
1 |
| 输入数
Number of Inputs |
2 |
| 电源电压Vcc
Voltage - Supply |
2V~5.5V |
| 静态电流Iq
Current - Quiescent (Max) |
1uA |
| 输出高，低电平电流
Current - Output High, Low |
-8mA，8mA |
| 低逻辑电平
Logic Level - Low |
0.5V~1.65V |
| 高逻辑电平
Logic Level - High |
1.5V~3.85V |
| 传播延迟时间@Vcc，CL
Max Propagation Delay @ V, Max CL |
7.9ns @ 4.5V~5.5V，50pF |
| Description & Applications |
Single 2-input AND gate；Features High Speed: tPD = 3.5 ns (Typ) at VCC = 5.0 V Low Power Dissipation: ICC = 1.0 A (Max) at TA = 25°C Power Down Protection Provided on Inputs Balanced Propagation Delays Pin and Function Compatible with Other Standard Logic Families Chip Complexity: FETs = 62 |
| 描述与应用 |
单路双输入与门；特性 高速：TPD= VCC= 5.0 V3.5纳秒（典型值） 低功耗：ICC=1.0 A（最大）在TA = 25°C 掉电保护的输入端 平衡传输延时 引脚和功能兼容与其他标准逻辑系列 芯片的复杂度：晶体管数= 62 |
