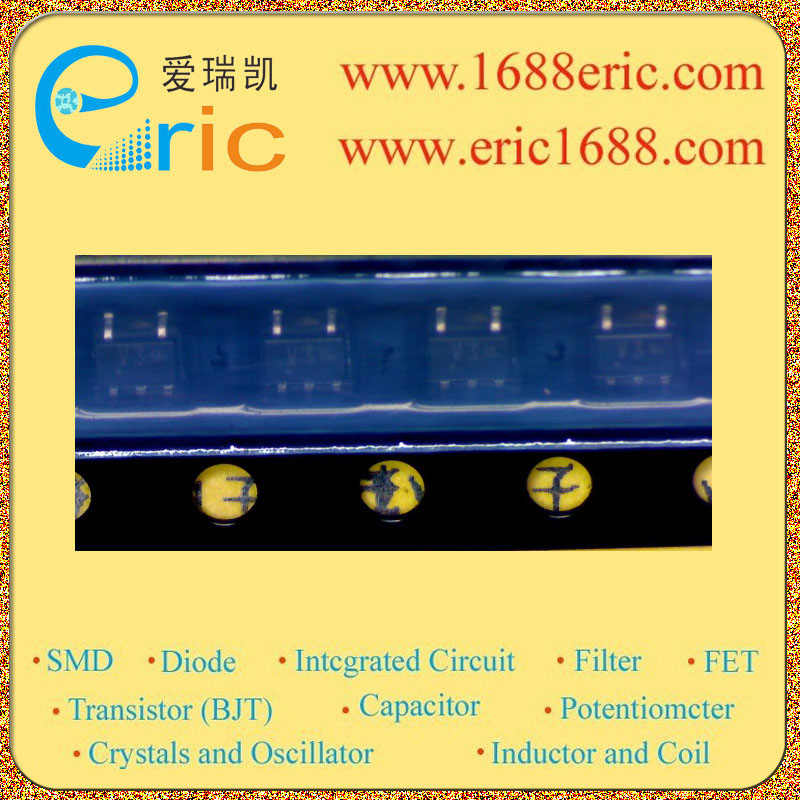

MC74VHC1G02DFT1 V3 的参数 |
| 逻辑类型
Logic Type |
或非门 NOR Gate |
| 电路数
Number of Circuits |
1 |
| 输入数
Number of Inputs |
2 |
| 电源电压Vcc
Voltage - Supply |
2V~5.5V |
| 静态电流Iq
Current - Quiescent (Max) |
1uA |
| 输出高，低电平电流
Current - Output High, Low |
-8mA，8mA |
| 低逻辑电平
Logic Level - Low |
0.5V~1.65V |
| 高逻辑电平
Logic Level - High |
1.5V~3.85V |
| 传播延迟时间@Vcc，CL
Max Propagation Delay @ V, Max CL |
7.5ns @ 5V，50pF |
| Description & Applications |
Single 2?Input NOR Gate ；Features High Speed: tPD = 3.7ns (Typ) @ VCC = 5V Low Internal Power Dissipation: ICC = 2μA (Max) @TA = 25°C Power Down Protection Provided on Inputs Pin and Function Compatible with Other Standard Logic Families Latchup Performance Exceeds 300mA ESD Performance: HBM > 2000V; MM > 200V, CDM > 1500V |
| 描述与应用 |
单路2输入或非门;特性 高速：TPD =3.7ns（典型值）@ VCC= 5V 内部功耗：ICC=2μA（最大值）@ TA= 25°C 掉电保护的输入端 引脚和功能兼容与其他标准逻辑系列 闭锁性能超过300mA ESD性能：HBM> 2000V; MM> 200V，CDM>1500V |
