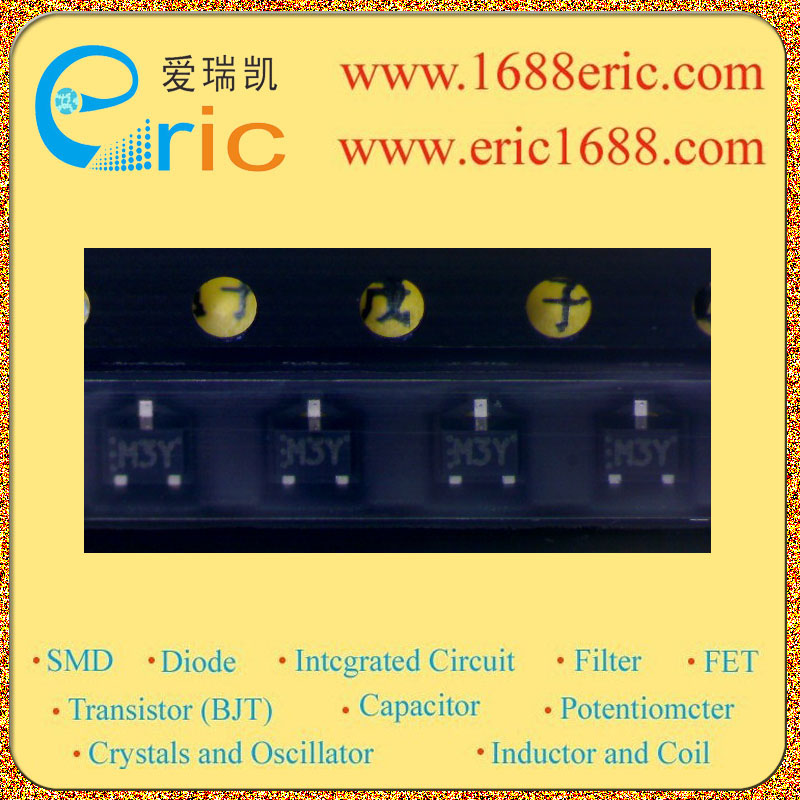

型号: |
MA792WA |
标记/丝印/代码/打字: |
M3Y |
厂家: |
Panasonic |
封装: |
SOT-323/SC-70 |
批号: |
05+ |
库存数量: |
87000 |
所属分类: |
二极管Diodes 肖特基势垒二极管SBDSchottky Barrier Diodes 双管共阳极1 Pair Common Anode |
技术文档PDF: |
在线阅读 |
|
|
在线购买 |
|
|
|
|
MA792WA M3Y 的参数 |
反向电压Vr
Reverse Voltage |
30V |
平均整流电流Io
AVerage Rectified Current |
200mA/0.2A |
最大正向压降VF
Forward Voltage(Vf) |
550mV/0.55V |
最大耗散功率Pd
Power dissipation |
|
Description & Applications |
?Schottky Barrier Diodes (SBD) ?Silicon epitaxial planar type ?For super high speed switching ?For small current rectification ?IF(AV)= 100 mA rectification is possible ?Optimum for high frequency rectification because of its short reverse recovery time (trr) ?Low forward voltage VF and good rectification efficiency ? S-Mini type 3-pin package ?Common anode Schottky Barrier diode |
描述与应用 |
肖特基势垒二极管(SBD) ?硅外延平面型 ?超高速开关 ?小整流电流 ?整流电流 IF(AV)=100毫安 ?因为其反向恢复时间短(TRR)所以适用于高频率整流 ?低正向电压VF和良好的整流效率 ?S-迷你型3引脚封装 ?共阳极肖特基二极管 |
技术文档PDF下载 |
在线阅读 |
|
|
|
|
相关型号列表 |
型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
MA792 |
M3T |
Panasonic |
05+ |
SOT-323/SC-70 |
0 |
二极管Diodes-肖特基势垒二极管SBDSchottky Barrier Diodes-单管Single |
查看 |
MA792 |
M3T |
Panasonic |
05+ |
SOT-323/SC-70 |
6400 |
二极管Diodes-肖特基势垒二极管SBDSchottky Barrier Diodes-单管Single |
查看 |
MA792WA |
M3Y |
Panasonic |
05+ |
SOT-323/SC-70 |
0 |
二极管Diodes-肖特基势垒二极管SBDSchottky Barrier Diodes-双管共阳极1 Pair Common Anode |
查看 |
MA792WA |
M3Y |
Panasonic |
05+ |
SOT-323/SC-70 |
87000 |
二极管Diodes-肖特基势垒二极管SBDSchottky Barrier Diodes-双管共阳极1 Pair Common Anode |
查看 |
MA792WK |
M3Z |
Panasonic |
05+NOPB10RM |
SOT-323/SC-70 |
33500 |
二极管Diodes-肖特基势垒二极管SBDSchottky Barrier Diodes-双管共阴极1 Pair Common Cathode |
查看 |
|
|
|
