型号: |
MA741WA |
标记/丝印/代码/打字: |

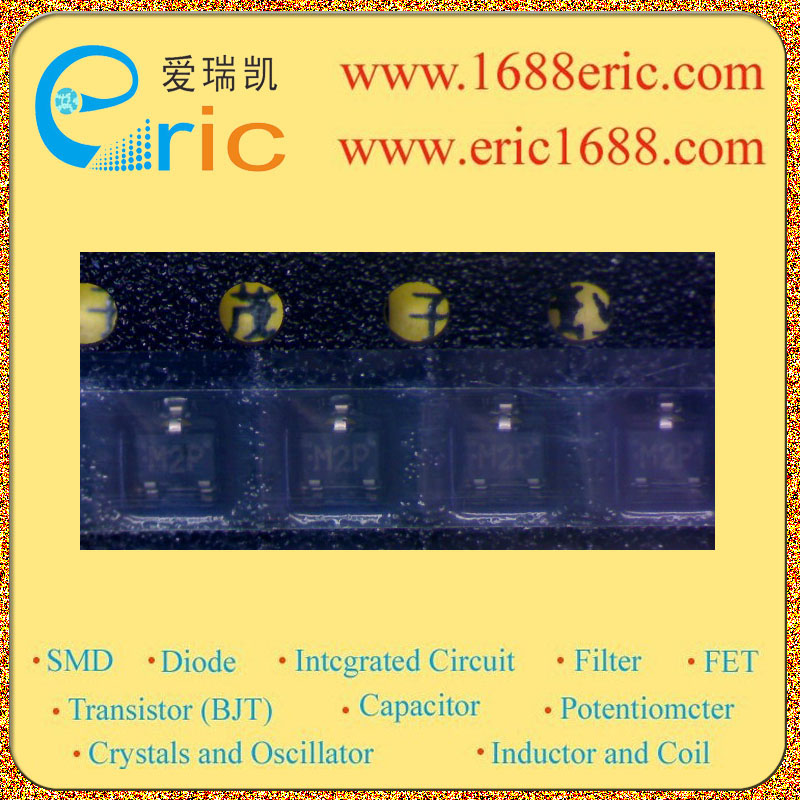

M2P |
厂家: |
Panasonic |
封装: |
SOT-323/SC-70 |
批号: |
05+ |
库存数量: |
500 |
所属分类: |
二极管Diodes 肖特基势垒二极管SBDSchottky Barrier Diodes 双管共阳极1 Pair Common Anode |
技术文档PDF: |
在线阅读 |
|
|
在线购买 |
|
|
|
|
MA741WA M2P 的参数 |
反向电压Vr
Reverse Voltage |
30V |
平均整流电流Io
AVerage Rectified Current |
20mA |
最大正向压降VF
Forward Voltage(Vf) |
1V |
最大耗散功率Pd
Power dissipation |
|
Description & Applications |
? Schottky Barrier Diodes (SBD) ? Silicon epitaxial planar type ? For switching circuits ? Two MA3J741s are contained in one package (S-mini type 3-pin) ? Low forward rise voltage (VF) and satisfactory wave detection efficiency (η) ? Small temperature coefficient of forward characteristic ? Extremely low reverse current IR ?Common Anode Schottky Barrier diode |
描述与应用 |
?肖特基势垒二极管(SBD) ?硅外延平面型 ?开关电路 ?低正向上升电压(VF)和理想检波效率(η) ?温度系数小的正向特性 ?极低的反向电流IR ?共阳极肖特基二极管 |
技术文档PDF下载 |
在线阅读 |
|
|
|
|
