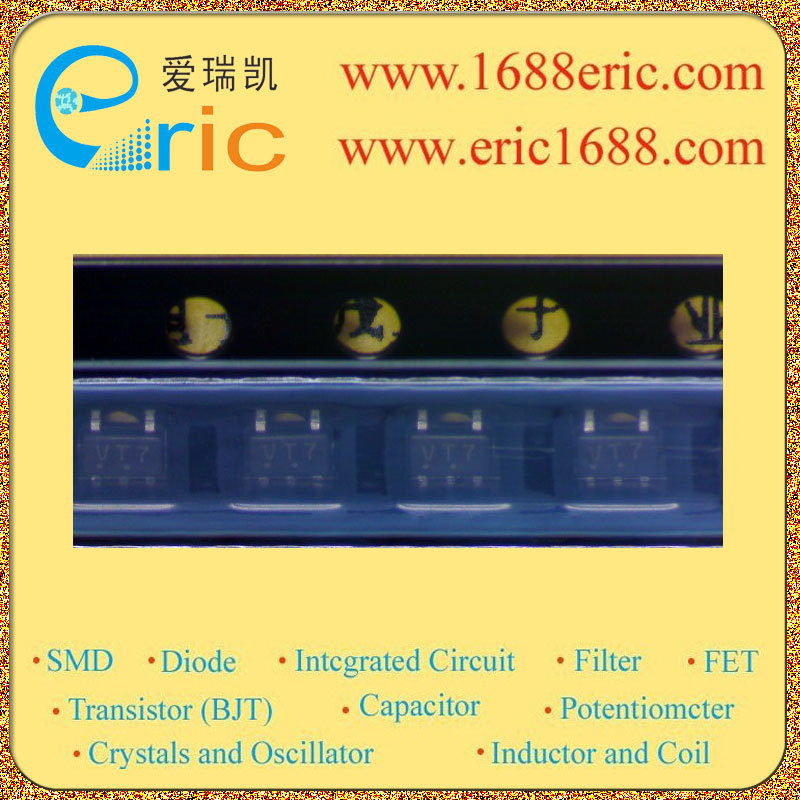

M74VHC1GT08DFT2G VT 的参数 |
| 逻辑类型
Logic Type |
与门 AND Gate |
| 电路数
Number of Circuits |
1 |
| 输入数
Number of Inputs |
2 |
| 电源电压Vcc
Voltage - Supply |
3V~5.5V |
| 静态电流Iq
Current - Quiescent (Max) |
1uA |
| 输出高，低电平电流
Current - Output High, Low |
-8mA，8mA |
| 低逻辑电平
Logic Level - Low |
0.53V~0.8V |
| 高逻辑电平
Logic Level - High |
1.4V~2.0V |
| 传播延迟时间@Vcc，CL
Max Propagation Delay @ V, Max CL |
4.2ns @ 4.5V，50pF |
| Description & Applications |
2?Input AND Gate/CMOS Logic Level Shifter；Features High Speed: tPD = 3.5 ns (Typ) at VCC = 5.0 V Low Power Dissipation: ICC = 1 uA (Max) at TA = 25°C TTL?Compatible Inputs: VIL = 0.8 V; VIH = 2.0 V CMOS?Compatible Outputs: VOH > 0.8 VCC; VOL < 0.1 VCC @Load Power Down Protection Provided on Inputs and Outputs Balanced Propagation Delays Pin and Function Compatible with Other Standard Logic Families Chip Complexity: FETs = 64; Equivalent Gates = 15 Pb?Free Packages are Available |
| 描述与应用 |
双输入与门/ CMOS逻辑电平转换器;特性 高速：TPD= VCC= 5.0 V3.5纳秒（典型值） 低功耗：ICC=1 UA TA= 25°C（最大值） TTL兼容的输入：VIL=0.8 V; VIH=2.0 V CMOS兼容输出：VOH> 0.8 VCC VOL<0.1 VCC@负载 掉电保护提供输入和输出 平衡传输延时 引脚和功能兼容与其他标准逻辑系列 芯片的复杂性：场效应管=64;等效门= 15 无铅封装 |
