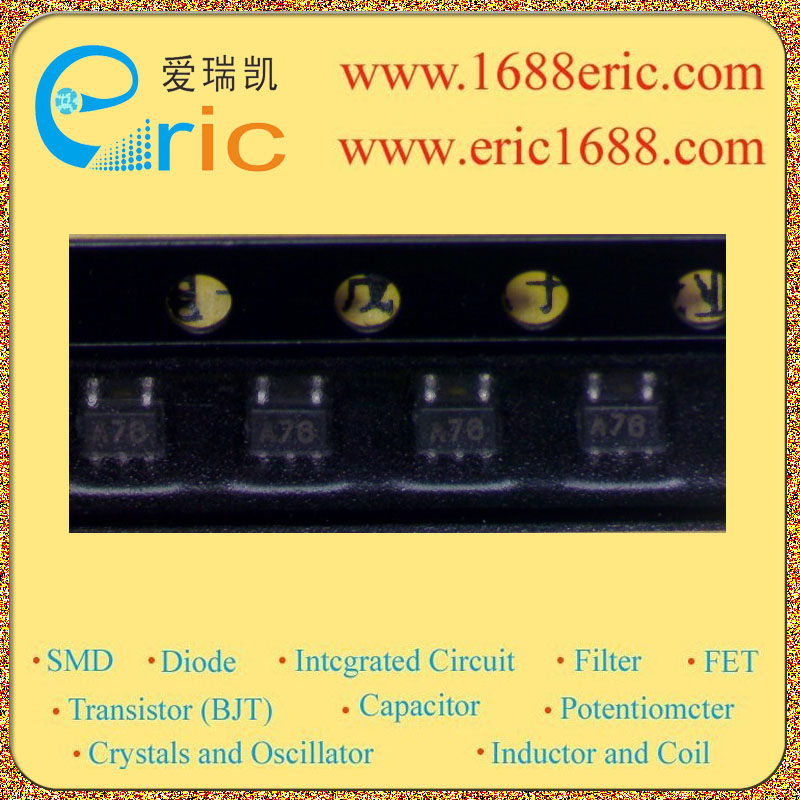

LMH6657MG A7 的参数 |
| 电路数
Number of Circuits |
1 |
| 转换速率
Slew Rate |
700V/μs |
| 增益带宽积
Gain Bandwidth Product |
140MHz |
| 共模抑制比
Common Mode Rejection Ratio |
84dB |
| -3db 带宽
-3db Bandwidth |
270MHz |
| 输入偏置电流
Current - Input Bias |
5μA |
| 输入失调电压
Voltage - Input Offset |
1mV |
| 电源电流
Current - Supply |
6.5mA |
| 电流 - 输出/通道
Current - Output / Channel |
110mA |
| 电压 - 电源，单/双 (±)
Voltage - Supply, Single/Dual (±) |
3 V ~ 12 V，±1.5 V ~ 6 V |
| Description & Applications |
270 MHz Single Supply, Single & Dual Amplifiers;CD/DVD ROM ADC buffer amp Portable video Current sense buffer Portable communications |
| 描述与应用 |
270 MHz的单电源，单路和双路放大器;CD / DVD ROM ADC缓冲放大器 便携式视频 电流检测缓冲区 便携式通信 |
