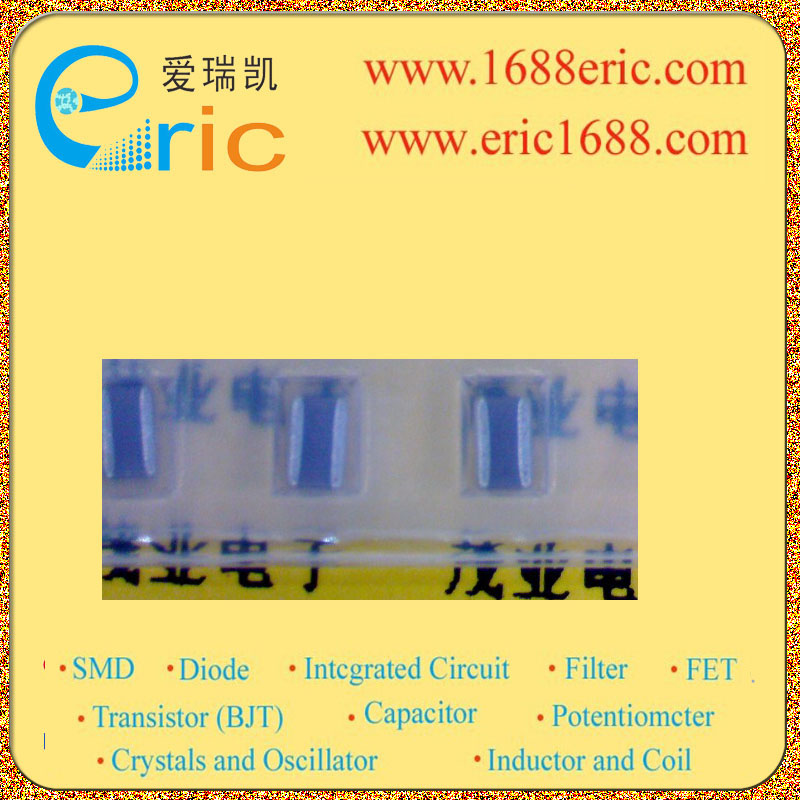

型号： |
LL0508X7R103K50 |
| 标记/丝印/代码/打字： |
LLL216R71H103KD12L |
| 厂家： |
MURATA |
| 封装： |
0805-103K |
| 批号： |
05+ |
| 库存数量： |
0 |
| 所属分类： |
电容Capacitor
独石电容Multilayer ceramic capacitor/MLCC |
| 技术文档PDF： |
在线阅读  |
| |
|
| 在线购买 |
|
|
|
|
LL0508X7R103K50 LLL216R71H103KD12L 的参数 |
| 电容值
Capacitance |
|
| 容差
Tolerance |
|
| 额定电压
Voltage Rating |
|
| 温度系数
Temperature Coefficient |
|
| Description & Applications |
L x W dimension: products of 0.6 x 0.3 mm or less Low dissipation for high frequency By devising ceramic materials and electrode materials, low dissipation is achieved in frequency bands of VHF, UHF and microwave or beyond. Low inductance This capacitor is designed so that the parasitic inductance component (ESL) that the capacitor has on the high frequency side becomes lower. Product suitable for acoustic noise reduction and low distortion This product suppresses acoustic noise, which occurs when a ceramic capacitor is used, by devising the materials and configuration. Product resistant to deflection cracking This capacitor is designed to prevent failures as much as possible by short mode caused by cracking when there is board deflection. Product with solder cracking suppression This capacitor is configured with metal terminals and leads connected to the chip. The metal terminals and leads relieve the stress from expansion and contraction of the solder, to suppress solder cracking. Voltage and temperature derating recommended product This product is suitable when a voltage continuously applied to a capacitor in an operating circuit, is used below (derated) the rated voltage of the capacitor. This model guarantees the test conditions in the endurance test, at a rated voltage x 100% at the maximum operating temperature. A reliability assurance level equivalent to a common product can be secured, by using this product within the voltage and temperature derated conditions recommended in the figure below. |
| 描述与应用 |
长x宽尺寸：0.6×0.3毫米或更小的产品 低功耗高频率 通过制订陶瓷材料和电极材料，甚高频，超高频及更高频段的的低功耗得以实现 低电感 该电容的设计，使在电容器高频率一侧的寄生电感（ESL）的分量变低 产品适合吸音降噪和低失真 通过设计材料和配置，使用陶瓷电容器，本产品抑制噪声 产品耐偏转开裂 该电容被设计成通过短路模式，当有电路板偏转，尽可能多的防止故障而导致开裂 产品抑制焊点龟裂 这个电容是用金属终端和连接到芯片中的引线配置而成 金属终端和导线减轻焊料扩张和收缩的压力，抑制焊料开裂 电压和温度降额推荐产品 在运算电路中，当电压连续施加在一个电容器，本产品在电容器额定电压以下适用 |
| 技术文档PDF下载 |
在线阅读 |
|
|
|
|
|
