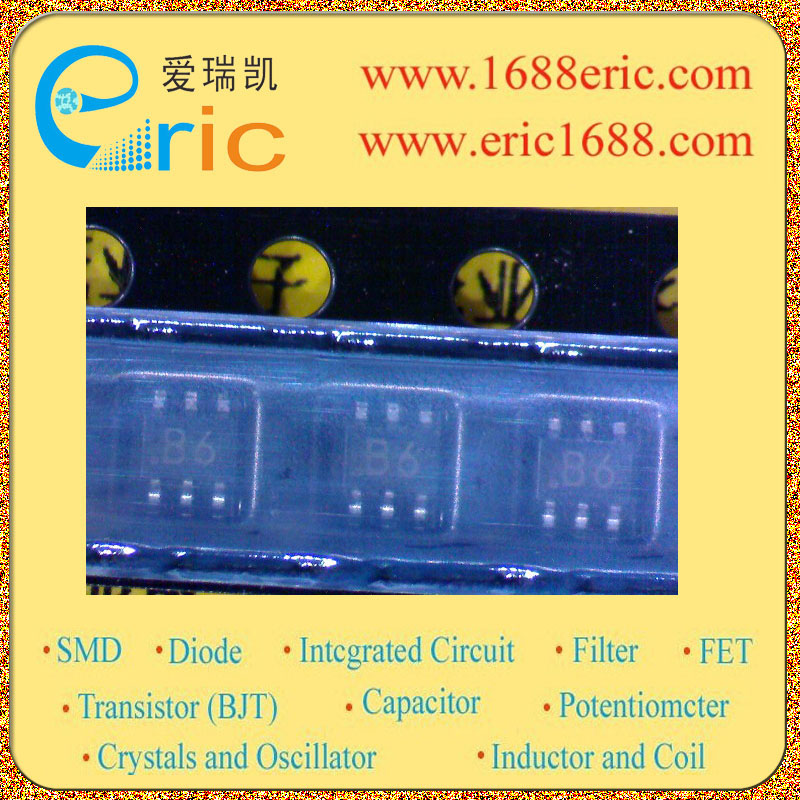

KTX101U-GR-RTK B6 的参数 |
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
60V/-60V |
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
50V/-50V |
集电极连续输出电流IC
Collector Current(IC) |
150mA/-150mA |
截止频率fT
Transtion Frequency(fT) |
80MHz |
直流电流增益hFE
DC Current Gain(hFE) |
120~400 |
管压降VCE(sat)
Collector-Emitter Saturation Voltage |
100mV/-100mV |
耗散功率Pc
Power Dissipation |
200mW |
Description & Applications |
Features ?EPITAXIAL PLANAR NPN/PNP TRANSISTOR ?Including two devices in US6.(Ultra Super mini type with 6 leads) ?Simplify circuit design. ?Reduce a quantity of parts and manufacturing process. ?GENERAL PURPOSE APPLICATION. |
描述与应用 |
特点 ?外延平面NPN/ PNP晶体管 ?在US6包括两个设备(超超级迷你型6引线) ?简化电路设计。 ?减少了部件数量和制造工艺。 ?通用应用。 |
