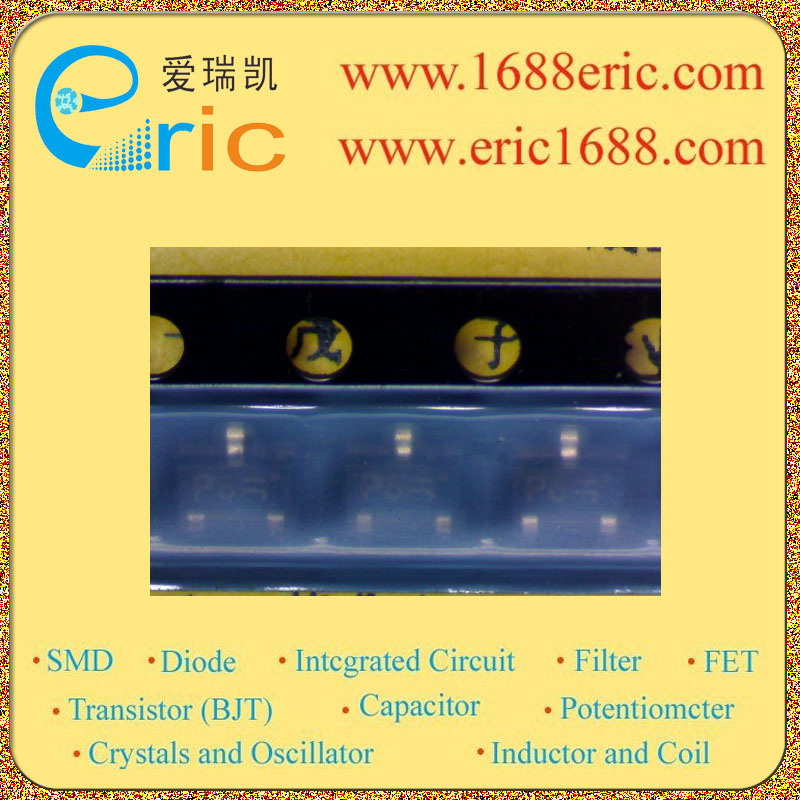

KRA119S P6 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
-50V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
-50V |
| 集电极连续输出电流IC
Collector Current(IC) |
-100mA/-0.1A |
| 基极输入电阻R1
Input Resistance(R1) |
4.7KΩ/Ohm |
| 基极-发射极输入电阻R2
Base-Emitter Resistance(R2) |
10KΩ/Ohm |
| 电阻比(R1/R2)
Resistance Ratio |
0.47 |
| 直流电流增益hFE
DC Current Gain(hFE) |
|
| 截止频率fT
Transtion Frequency(fT) |
250MHz |
| 耗散功率Pc
Power Dissipation |
0.2W/200mW |
| Description & Applications |
FEATURES ?with built-in RESISTOR ?simplify circuit design ?reduce a quantity of parts and manufacturing process |
| 描述与应用 |
特点 ?内置电阻 ?简化电路设计 ?减少了部件数量和制造工艺 |
