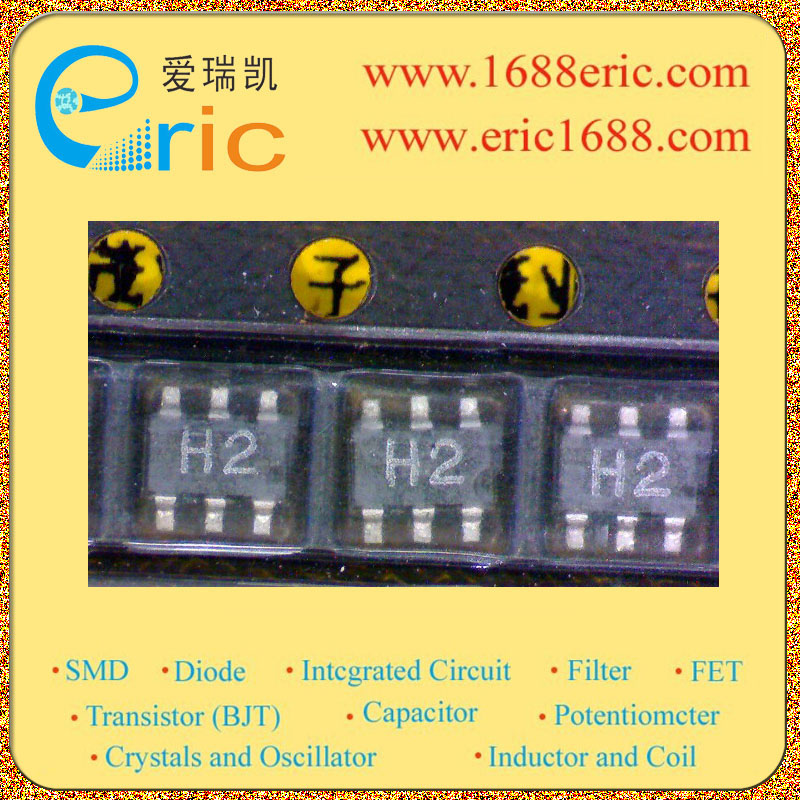

IMH2
 型号:  IMH2
 标记/丝印/代码/打字:  H2
 厂家:  ROHM
 封装:  SOT-163/SMT6/SC-74
 批号:  02+
 库存数量:  23000
 所属分类:  三极管Bipolar Junction Transistors(BJT)
  复合带阻尼三极管Complex Bipolar Digital Transistor
    NPN+NPN
 技术文档PDF:  在线阅读

 在线购买

IMH2 H2 的参数

集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) 50V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) 50V
集电极连续输出电流IC Collector Current(IC) 30mA
Q1基极输入电阻R1 Input Resistance(R1) 47KΩ/Ohm
Q1基极-发射极输入电阻R2 Base-Emitter Resistance(R2) 47KΩ/Ohm
Q1电阻比(R1/R2) Q1 Resistance Ratio 1
Q2基极输入电阻R1 Input Resistance(R1) 47KΩ/Ohm
Q2基极-发射极输入电阻R2 Base-Emitter Resistance(R2) 47KΩ/Ohm
Q2电阻比(R1/R2) Q2 Resistance Ratio 1
直流电流增益hFE DC Current Gain(hFE)
截止频率fT Transtion Frequency(fT) 250MHz
耗散功率Pc Power Dissipation 300mW/0.3W
Description & Applications Features ?General purpose (dual digital transistors) ?Two DTC144Es chips in a EMT or UMT or SMT package. ?Mounting possible with EMT3 or UMT3 or SMT3 automatic mounting machines. ?Transistor elements are independent, eliminating interference. ?Mounting cost and area can be cut in half.
描述与应用 特点 ?通用(双数字晶体管) ?的两个DTC144Es芯片在EMT或UMT或SMT封装。 ?安装可能与EMT3或UMT3或SMT3自动安装机器。 ?晶体管元素是独立的,消除干扰。 ?安装成本和面积可减少一半
技术文档PDF下载 在线阅读



 相关型号列表

型号 标记/丝印/代码 厂家 批号 封装 数量 描述 详细资料
IMH1 H1 ROHM 06NOPB15K SOT-163/SMT6/SC-74 40700 三极管Bipolar Junction Transistors(BJT)-复合带阻尼三极管Complex Bipolar Digital Transistor-NPN+NPN 查看
IMH1 H1 ROHM 05+ SOT-163/SMT6/SC-74 6000 三极管Bipolar Junction Transistors(BJT)-复合带阻尼三极管Complex Bipolar Digital Transistor-NPN+NPN 查看
IMH10 H10 ROHM 04+3Knopb SOT-163/SMT6/SC-74 9000 三极管Bipolar Junction Transistors(BJT)-复合带阻尼三极管Complex Bipolar Digital Transistor-NPN+NPN 查看
IMH10A H10 ROHM 04+ SOT-163/SMT6/SC-74 1000 三极管Bipolar Junction Transistors(BJT)-复合带阻尼三极管Complex Bipolar Digital Transistor-NPN+NPN 查看
IMH11 H11 ROHM 04+ SOT-163/SMT6/SC-74 2000 三极管Bipolar Junction Transistors(BJT)-复合带阻尼三极管Complex Bipolar Digital Transistor-NPN+NPN 查看
IMH11A H11 ROHM 05+ SOT-163/SMT6/SC-74 0 三极管Bipolar Junction Transistors(BJT)-复合带阻尼三极管Complex Bipolar Digital Transistor-NPN+NPN 查看
IMH14 H14 ROHM 05+ SOT-163/SMT6/SC-74 3000 三极管Bipolar Junction Transistors(BJT)-复合带阻尼三极管Complex Bipolar Digital Transistor-NPN+NPN 查看
IMH14 H14 ROHM 04+ SOT-163/SMT6/SC-74 4000 三极管Bipolar Junction Transistors(BJT)-复合带阻尼三极管Complex Bipolar Digital Transistor-NPN+NPN 查看
IMH1A H1 ROHM 05+ SOT-163/SMT6/SC-74 0 三极管Bipolar Junction Transistors(BJT)-复合带阻尼三极管Complex Bipolar Digital Transistor-NPN+NPN 查看
IMH2 H2 ROHM 02+ SOT-163/SMT6/SC-74 23000 三极管Bipolar Junction Transistors(BJT)-复合带阻尼三极管Complex Bipolar Digital Transistor-NPN+NPN 查看
IMH20 H20 ROHM 03+ SOT-163/SMT6/SC-74 15000 三极管Bipolar Junction Transistors(BJT)-复合带阻尼三极管Complex Bipolar Digital Transistor-NPN+NPN 查看
IMH20 H20 ROHM 05+ SOT-163/SMT6/SC-74 0 三极管Bipolar Junction Transistors(BJT)-复合带阻尼三极管Complex Bipolar Digital Transistor-NPN+NPN 查看
IMH20 H20 ROHM 03+ SOT-163/SMT6/SC-74 144000 三极管Bipolar Junction Transistors(BJT)-复合带阻尼三极管Complex Bipolar Digital Transistor-NPN+NPN 查看
IMH21 H21 ROHM 05+ SOT-163/SMT6/SC-74 2900 三极管Bipolar Junction Transistors(BJT)-复合带阻尼三极管Complex Bipolar Digital Transistor-NPN+NPN 查看
IMH2 H2 ROHM 05+ SOT-163/SMT6/SC-74 9000 三极管Bipolar Junction Transistors(BJT)-复合带阻尼三极管Complex Bipolar Digital Transistor-NPN+NPN 查看
IMH3A H3 ROHM 05+ SOT-163/SMT6/SC-74 6000 三极管Bipolar Junction Transistors(BJT)-复合带阻尼三极管Complex Bipolar Digital Transistor-NPN+NPN 查看
IMH3A H3 ROHM 02+ SOT-163/SMT6/SC-74 8990 三极管Bipolar Junction Transistors(BJT)-复合带阻尼三极管Complex Bipolar Digital Transistor-NPN+NPN 查看
IMH4 H4 ROHM 05+ SOT-163/SMT6/SC-74 3000 三极管Bipolar Junction Transistors(BJT)-复合带阻尼三极管Complex Bipolar Digital Transistor-NPN+NPN 查看
IMH4 H4 ROHM 00+ SOT-163/SMT6/SC-74 20900 三极管Bipolar Junction Transistors(BJT)-复合带阻尼三极管Complex Bipolar Digital Transistor-NPN+NPN 查看
IMH5 H5 ROHM 05NOPB20RM+33K SOT-163/SMT6/SC-74 105000 三极管Bipolar Junction Transistors(BJT)-复合带阻尼三极管Complex Bipolar Digital Transistor-NPN+NPN 查看
