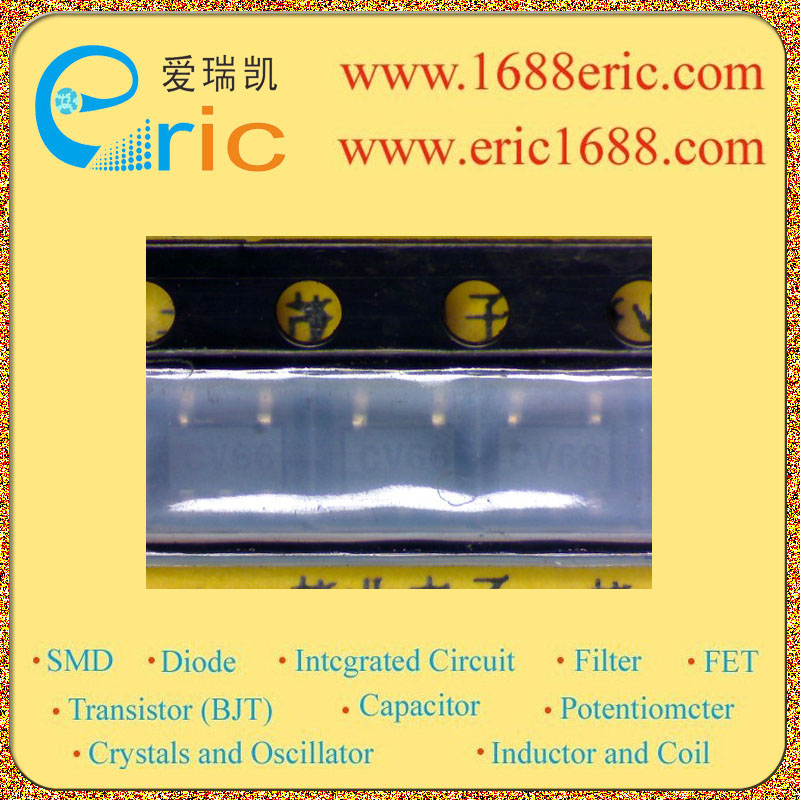

ILC7081AIM5-285 CV66 的参数 |
| 电路数量
Number of Regulators |
1 |
| 输入电压VIN
Voltage - Input |
-0.3~13.5V |
| 输出电压VOUT
Voltage - Output |
2.85V |
| 输出电流Io
Current - Output |
150mA/0.15A |
| 最大压降VDO
Voltage - Dropout |
150mV/0.15V |
| 带使能脚EN/CE(ON/OFF功能)
With Enable Pin |
有 Yes |
| 最大耗散功率Pd
Power dissipation |
200mW/0.2W |
| Description & Applications |
50/100mA SOT-23 CMOS RF LDO? Regulators ;?Ultra low 1mV dropout per 1mA load ?1% output voltage accuracy ? Uses low ESR ceramic output capacitor to minimize noise and output ripple ? Only 100μA ground current at 100mA load ? Ripple rejection up to 85dB at 1kHz, 60dB at 1MHz ? Less than 80μVRMS noise at BW = 100Hz to 100kHz ? Excellent line and load transient response ? Over current / over temperature protection ? Guaranteed up to 80/150mA output current ? Fixed 2.85V, 3.0V, 3.3V, 3.6V, 4.7V, 5.0V and adjustable output voltage options ? Metal mask option available for custom voltages between 2.5 to 10V ? Cellular phones ? Wireless communicators ? PDAs / palmtops / organizers ? Battery powered portable electronics |
| 描述与应用 |
50/100mA SOT-23 RF CMOS LDO稳压器?;?超低1mV的压降每1mA负载 ?1％的输出电压精度 ?使用低ESR陶瓷输出电容，以减少噪声和输出纹波 ?只有在100mA负载电流100μA地面 纹波抑制为85dB1kHz时为60dB1MHz的 ?小于80μVRMS噪声BW=100Hz到100kHz ?出色的线路和负载瞬态响应 ?过电流/过温度保护 ?保证到80/150mA输出电流 ?固定2.85V，3.0V，3.3V，3.6V，4.7V，5.0V和可调输出电压选项 ?金属掩膜选项可自定义的电压之间 2.5到10V ?手机 ?无线传播者 ?如PDA /掌上电脑/组织者 ?电池供电的便携式电子产品 |
