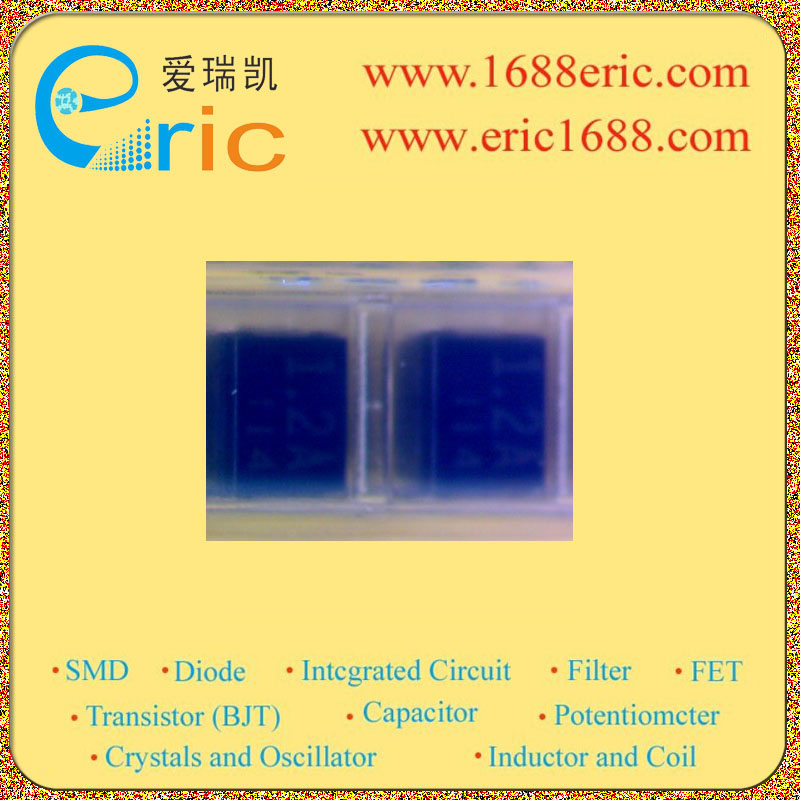

ICP-S1.2TN 1.2A 的参数 |
| 额定电流
Current Rating |
1.2A |
| 熔断能力
Interrupting Rating |
|
| 额定电压
Voltage Rating |
50V |
| Description & Applications |
Overcurrent Protection Elements The ICP-S is an IC protector of surface mounting type developed as an element for the protection of ICs from output short-circuiting damage. The internal resistance of this lightweight, compact overcurrent protection element is low, as long as the steady-state current of the element does not exceed the rated DC or AC current. The ICP-S, however, turns off ICs instantly if the steady-state current reaches or exceeds the breaking current of the ICP-S. Instantly breaks currents with a low potential drop. (See 3-1 Potential Drop Comparison) Compact surface-mounting model. (See 2. External Dimensions) Unlike fuses, there is no steady-state current reduction with the rated current applied. No derating is necessary. Minimal breaking point dispersion. (See the graph in 3-2 Breaking Current Dispersion Characteristics) Excellent temperature characteristics (See the graphs in 3-3 Temperature Characteristics) .The fluctuation of the breaking current caused by temperature changes is minimal. Wide operating temperature range: -55°C to +125°C Excellent vibration resistance. UL-approved product with certification No. 107856. No deterioration or circuit breaking caused by static electricity. |
| 描述与应 |
过电流保护元件 ICP-S是表面安装型的IC保护器作为一个元素，以保护从输出的集成电路开发 短路损坏。轻巧，过电流保护元件的内部电阻低的稳态电流的元件，只要不超过额定的直流或交流电流。 ICP-S，然而，关闭芯片 如果稳态电流瞬间达到或超过ICP-S的开断电流。 瞬时电流中断（见3-1势掉落比较）具有低的电势降。 小型表面安装模式。 （见2。外形尺寸） 与保险丝不同，不存在稳态电流与额定电流降低。无降容是必要的。 最小断裂点分散。 （见图表3-2断电流分散 特性） 优良的温度特性（见图表3-3温度特性） .开断电流，温度变化引起的波动是最小的。 .宽工作温度范围：-55°C至+125°C 优异的抗振动能力。 UL认证的产品，认证号：107856。 没有恶化或电路打破由静电引起的 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| ICP-S1.0 |
1.0A |
ROHM |
05+ |
1210-1A |
0 |
保险管FUSE-过流保护Overcurrent Protection |
查看 |
| ICP-S1.0 |
1.0A |
ROHM |
05+NOPB1900 |
1210-1A |
26900 |
保险管FUSE-过流保护Overcurrent Protection |
查看 |
| ICP-S1.2 |
1.2A |
ROHM |
05+ |
1210-1.2A |
0 |
保险管FUSE-过流保护Overcurrent Protection |
查看 |
| ICP-S1.2TN |
1.2A |
ROHM |
04+ROHS3K |
1210-1.2A |
32500 |
保险管FUSE-过流保护Overcurrent Protection |
查看 |
| ICP-S1.8 |
1.8A |
ROHM |
05+ |
1210-1.8A |
0 |
保险管FUSE-过流保护Overcurrent Protection |
查看 |
| ICP-S1.8 |
1.8A |
ROHM |
05+NOPB400 |
1210-1.8A |
3400 |
保险管FUSE-过流保护Overcurrent Protection |
查看 |
|
|
|
