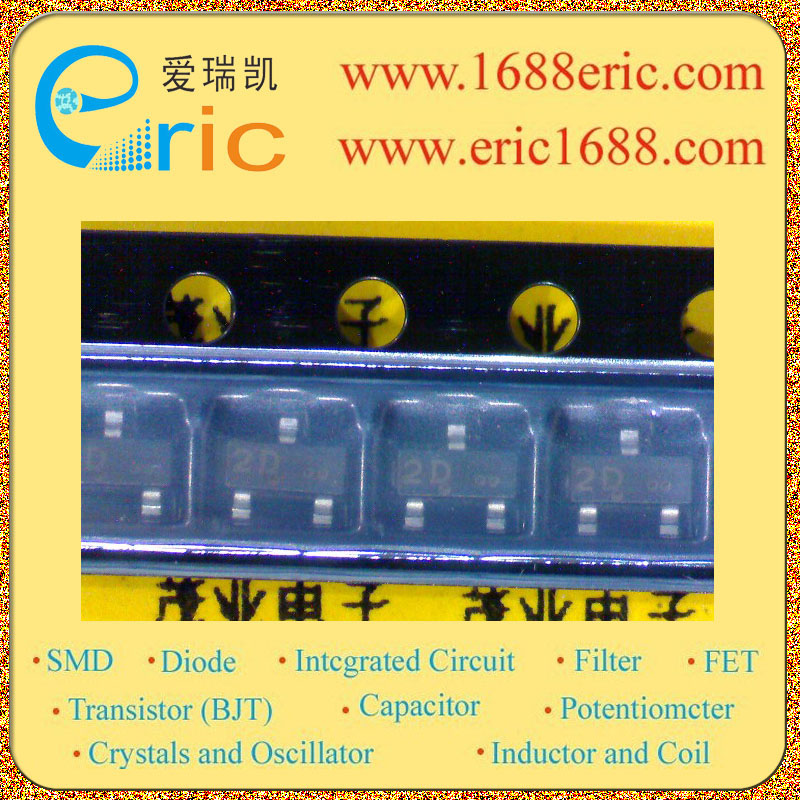

HMBTA92XLT1G 2D 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
-300V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
?300V |
| 集电极连续输出电流IC
Collector Current(IC) |
?500mA/-0.5A |
| 截止频率fT
Transtion Frequency(fT) |
50MHz |
| 直流电流增益hFE
DC Current Gain(hFE) |
40 |
| 管压降VCE（sat）
Collector-Emitter SaturationVoltage |
?500mV/-0.5V |
| 耗散功率Pc
PoWer Dissipation |
225mW/0.225W |
| Description & Applications |
PNP epitaxial planar transistor Description The HMBTA92 is designed for application as a video output to drive color CRT, or as a dialer circuit in electronics telephone. |
| 描述与应用 |
PNP外延平面晶体管 描述 的HMBTA92被作为视频输出，来驱动彩色阴极射线管，或作为在电子电话拨号器电路设计的应用程序。 |
