HD74HC245FP 的参数 |
| 逻辑类型
Logic Type |
收发器，非反相 Transceiver, Non-Inverting |
| 元件数
Number of Elements |
1 |
| 每元件位数
Number of Bits per Element |
8 |
|
1.2 V ~ 3.6 V |
| 电源电压
Voltage - Supply |
24mA，24mA |
| 输出高电平，低电平电流
Current - Output High, Low |
Octal Bus Transceivers (with 3-state outputs) Description This device has an active low enable input G and a direction control input (DIR). When DIR is high, data flows from the A inputs to the B outputs. When DIR is low, data flows from the B inputs to the A outputs. The HD74HCT245 transfers true data from one bus to the other. This device does not have schmitt trigger inputs. Features ? LSTTL Output Logic Level Compatibility as well as CMOS Output Compatibility ? High Speed Operation: tpd (A to Y) = 12 ns typ (CL = 50 pF) ? High Output Current: Fanout of 15 LSTTL Loads ? Wide Operating Voltage: VCC = 4.5 to 5.5 V ? Low Input Current: 1 μA max ? Low Quiescent Supply Current: ICC (static) = 4 μA max (Ta = 25°C) ? Ordering Information |
| Description & Applications |
八路总线收发器（三态输出） 描述 该器件具有一个低电平有效使能输入G和方向控制输入（DIR）。当DIR为高，数据流量 A输入B输出。当DIR低，B输入A输出的数据流。 HD74HCT245 传输真正的数据总线。 此设备不具有施密特触发输入 ?输入通道输出逻辑电平兼容，以及CMOS输出兼容性 ?高速运行：TPD（Y）=12 ns（典型值）（CL= 50 PF） ?高输出电流：扇出的15输入通道负载 ?宽工作电压：VCC=4.5到5.5 V ?低输入电流：最大1μA ?低静态电源电流：ICC（静态）= 4μA最大（大= 25°C） ?订购信息 |
| 描述与应用 |
|
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |

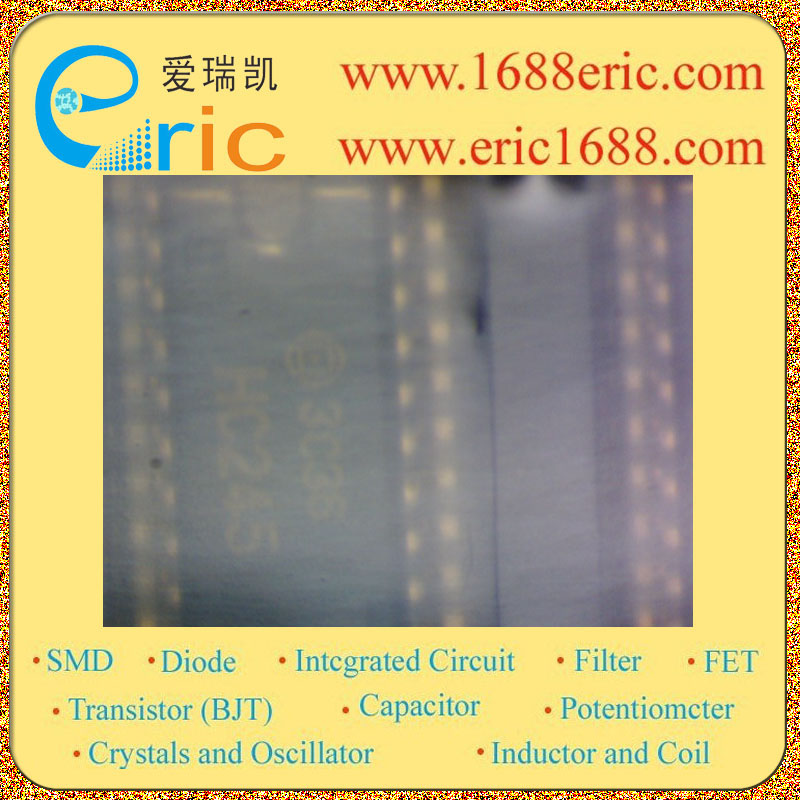

| HD74HC245FP |
|
HITACHI |
05+ |
SOP-20 |
12 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-总线收发器Bus Transceiver |
