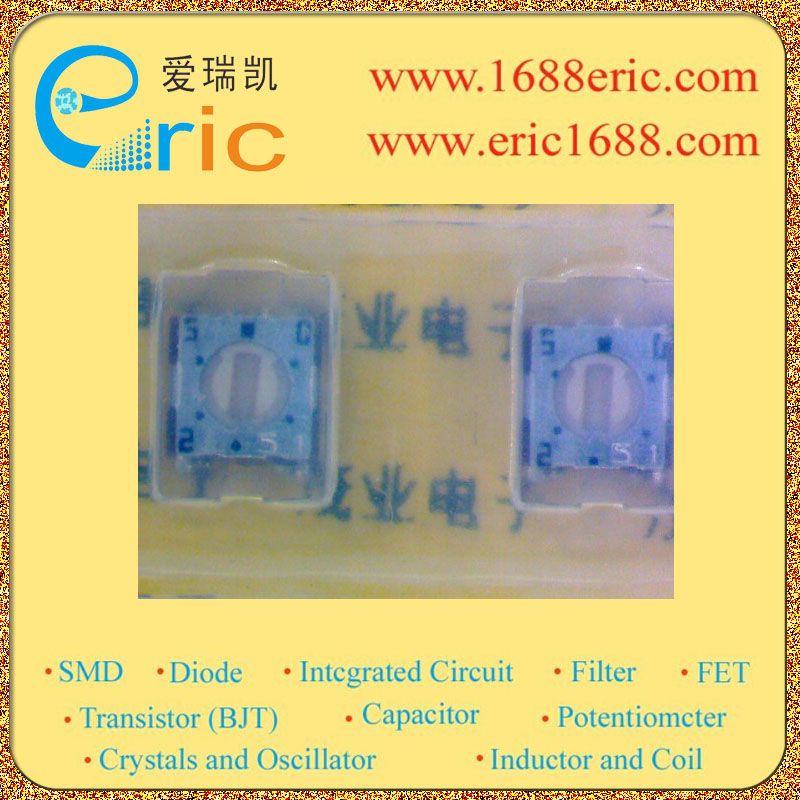

G3ATB502M 502 的参数 |
| 电阻值
Resistance |
5KΩ/Ohm |
| 额定功率
Power |
0.125w,1/8w |
| 容差
Tolerance |
±20% |
| 温度系数
Temperature Coefficient |
±100ppm/°C |
| 圈数
Number of Turns |
单圈 Single |
| 调节类型
Adjustment Type |
顶部调节 Top Adjustment |
| 端子类型
Termination Style |
J引线 J Lead |
| Description & Applications |
● 3mm square SMD, single-turn, sealed cermet trimmers ● Available in J-hook and gull-wing terminal configurations ● Top adjustment in single-slot or automatic adjust cross-slot design ●Wide temperature range of!55&C to~125&C ●Designed for flow, reflow or infrared reflow soldering ●Sealed to withstand immersion cleaning processes ●Tape and reel packaging ● Meets EIA, EIAJ, IPC, VECI standard SMD trimmer designs |
| 描述与应用 |
●3mm的方形贴片，单圈密封的金属陶瓷剪 ●可在J型钩和鸥翼式终端配置 ●调整在单插槽或自动调节十字槽设计 ●温度范围宽！55＆C?125＆C ●专为流量，回流或红外回流焊 ●密封承受浸泡清洗流程 ●编带和卷轴包装 ●符合EIA，EIAJ，IPC，VECI标准SMD微调设计 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| G3ATB500m |
500 |
TOCOS |
05+ |
3X3-50R |
2200 |
电阻Resistor-可调电阻Trimmer Potentiometer |
查看 |
| G3ATB501M |
501 |
TOCOS |
05+ |
3x3-500R |
0 |
电阻Resistor-可调电阻Trimmer Potentiometer |
查看 |
| G3ATB501M |
501 |
TOCOS |
05+ |
3X3-500R |
1200 |
电阻Resistor-可调电阻Trimmer Potentiometer |
查看 |
| G3ATB502M |
502 |
TOCOS |
05+ |
3X3-5K |
1000 |
电阻Resistor-可调电阻Trimmer Potentiometer |
查看 |
| G3ATB502M |
502 |
TOCOS |
05+ |
3X3-5K |
12300 |
电阻Resistor-可调电阻Trimmer Potentiometer |
查看 |
| G3ATB503M |
503 |
TOCOS |
05+ |
3X3-50K |
1200 |
电阻Resistor-可调电阻Trimmer Potentiometer |
查看 |
| G3ATB503M |
503 |
TOCOS |
05+ |
3X3-50K |
4500 |
电阻Resistor-可调电阻Trimmer Potentiometer |
查看 |
| G3ATB504 |
504 |
TOCOS |
05+ |
3X3-50K |
400 |
电阻Resistor-可调电阻Trimmer Potentiometer |
查看 |
| G3ATB500 |
500 |
TOCOS |
05+ |
3X3-50R |
800 |
电阻Resistor-可调电阻Trimmer Potentiometer |
查看 |
|
|
|
