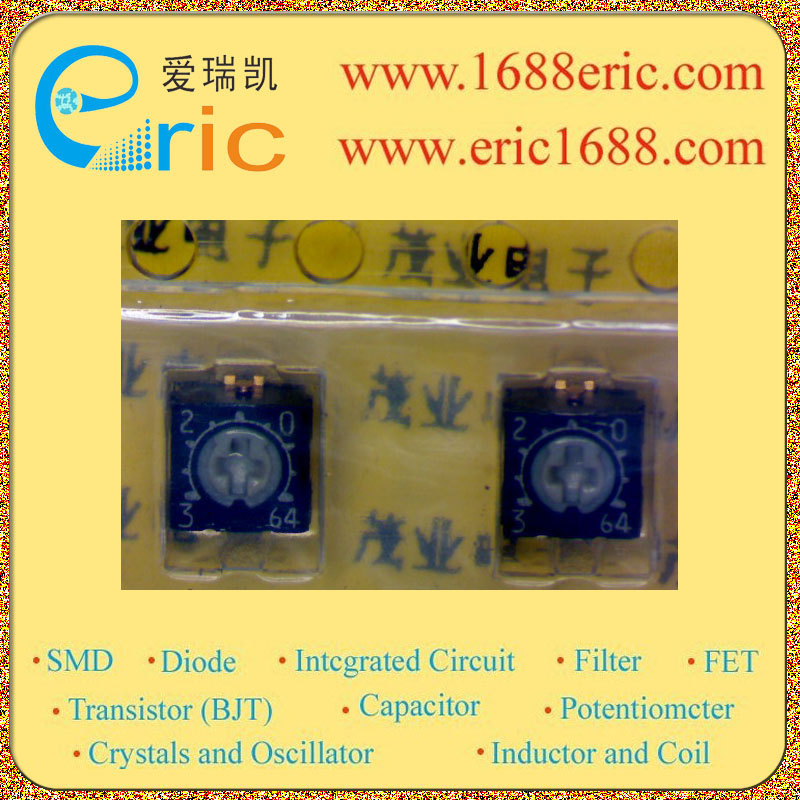

G32ATB203M 203 的参数 |
| 电阻值
Resistance |
20KΩ/Ohm |
| 额定功率
Power |
0.125w,1/8w |
| 容差
Tolerance |
±20% |
| 温度系数
Temperature Coefficient |
±100ppm/°C |
| 圈数
Number of Turns |
单圈 Single |
| 调节类型
Adjustment Type |
顶部调节 Top Adjustment |
| 端子类型
Termination Style |
J引线 J Lead |
| Description & Applications |
● 3mm square SMD, single-turn, sealed cermet trimmers ● Available in J-hook and gull-wing terminal configurations ● Meets EIA, EIAJ, IPC, VECI standard SMD trimmer designs ● Pb-free and Cd-free construction ● RoHS compliant ● Gold-plated leads provide high conductivity, low contact resistance, high corrosion resistance and good solderability ●Top cross-slot adjustment (top single-slot models available as special order) ● Tape and reel packaging |
| 描述与应用 |
●3mm的方形贴片，单圈，密封陶瓷剪 ●可在J型钩和鸥翼式终端配置 ●符合EIA，EIAJ，IPC，VECI标准SMD微调设计 ●无铅无镉建设的 ●符合RoHS标准 ●黄金镀线索提供高导电性，低接触电阻，高耐腐蚀性，良好的可焊性 ●顶部十字槽调整（顶级单插槽机型，可作为特殊订货） ●磁带和卷轴包装 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| G32ATB203M |
203 |
TOCOS |
06+ROHS |
3X3-20K |
0 |
电阻Resistor-可调电阻Trimmer Potentiometer |
查看 |
| G32ATB204M |
204 |
TOCOS |
05+ |
3x3-200k |
0 |
电阻Resistor-可调电阻Trimmer Potentiometer |
查看 |
| G32ATB202M |
202 |
TOCOS |
05+ |
3X3-2K |
0 |
电阻Resistor-可调电阻Trimmer Potentiometer |
查看 |
| G32ATB202M |
202 |
TOCOS |
05+ |
3X3-2K |
0 |
电阻Resistor-可调电阻Trimmer Potentiometer |
查看 |
| G32ATB203M |
203 |
TOCOS |
06+ROHS |
3X3-20K |
0 |
电阻Resistor-可调电阻Trimmer Potentiometer |
查看 |
|
|
|
