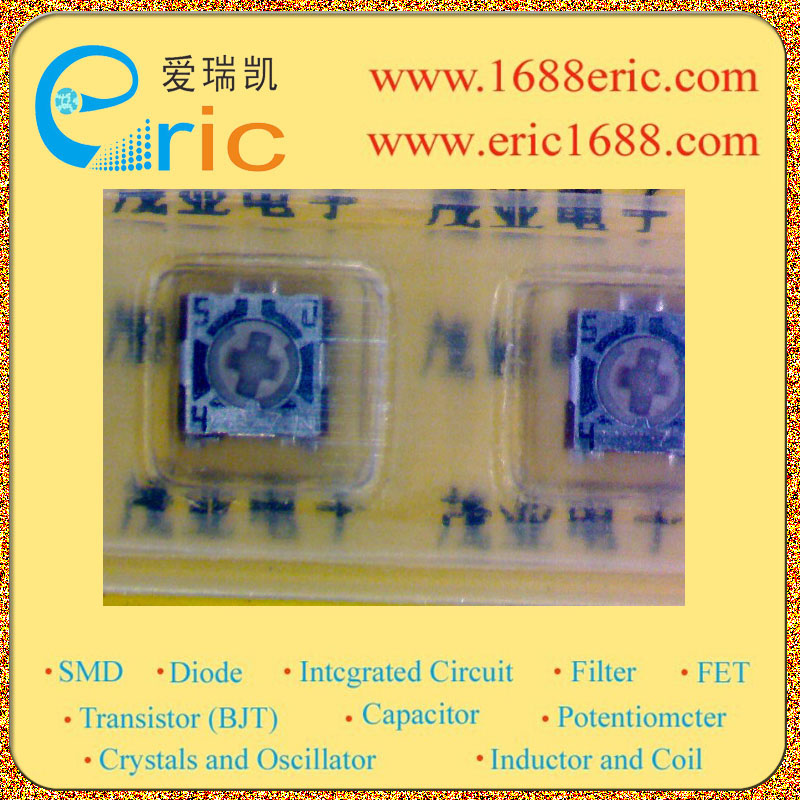

G31ATB504M
 型号:  G31ATB504M
 标记/丝印/代码/打字:  504
 厂家:  TOCOS
 封装:  3x3-500K
 批号:  05+
 库存数量:  500
 所属分类:  电阻Resistor
  可调电阻Trimmer Potentiometer
 技术文档PDF:  在线阅读

 在线购买

G31ATB504M 504 的参数

电阻值 Resistance 500KΩ/Ohm
额定功率 Power 0.125w,1/8w
容差 Tolerance ±20%
温度系数 Temperature Coefficient ±100ppm/°C
圈数 Number of Turns 单圈 Single
调节类型 Adjustment Type 顶部调节 Top Adjustment
端子类型 Termination Style J引线 J Lead
Description & Applications ● 3mm square SMD, single-turn, sealed cermet trimmers ● Available in J-hook and gull-wing terminal configurations ● Top adjustment in single-slot or automatic adjust cross-slot design ●Wide temperature range of!55&C to~125&C ●Designed for flow, reflow or infrared reflow soldering ●Sealed to withstand immersion cleaning processes ●Tape and reel packaging ● Meets EIA, EIAJ, IPC, VECI standard SMD trimmer designs
描述与应用 ●3mm的方形贴片,单圈密封的金属陶瓷剪 ●可在J型钩和鸥翼式终端配置 ●调整在单插槽或自动调节十字槽设计 ●温度范围宽!55&C?125&C ●专为流量,回流或红外回流焊 ●密封承受浸泡清洗流程 ●编带和卷轴包装 ●符合EIA,EIAJ,IPC,VECI标准SMD微调设计
技术文档PDF下载 在线阅读



 相关型号列表

型号 标记/丝印/代码 厂家 批号 封装 数量 描述 详细资料
G31ATB500M 500 TOCOS 05+ 3X3-50R 900 电阻Resistor-可调电阻Trimmer Potentiometer 查看
G31ATB501M 501 TOCOS 05+ 3X3-500R 100 电阻Resistor-可调电阻Trimmer Potentiometer 查看
G31ATB501M 501 tocos 05+ 3X3-500R 500 电阻Resistor-可调电阻Trimmer Potentiometer 查看
G31ATB502M 502 TOCOS 05+ 3X3-5K 500 电阻Resistor-可调电阻Trimmer Potentiometer 查看
G31ATB502M 502 TOCOS 05+ 3X3-5K 1500 电阻Resistor-可调电阻Trimmer Potentiometer 查看
G31ATB503M 503 TOCOS 05+ 3X3-50K 0 电阻Resistor-可调电阻Trimmer Potentiometer 查看
G31ATB504M 504 TOCOS 05+ 3x3-500K 500 电阻Resistor-可调电阻Trimmer Potentiometer 查看
