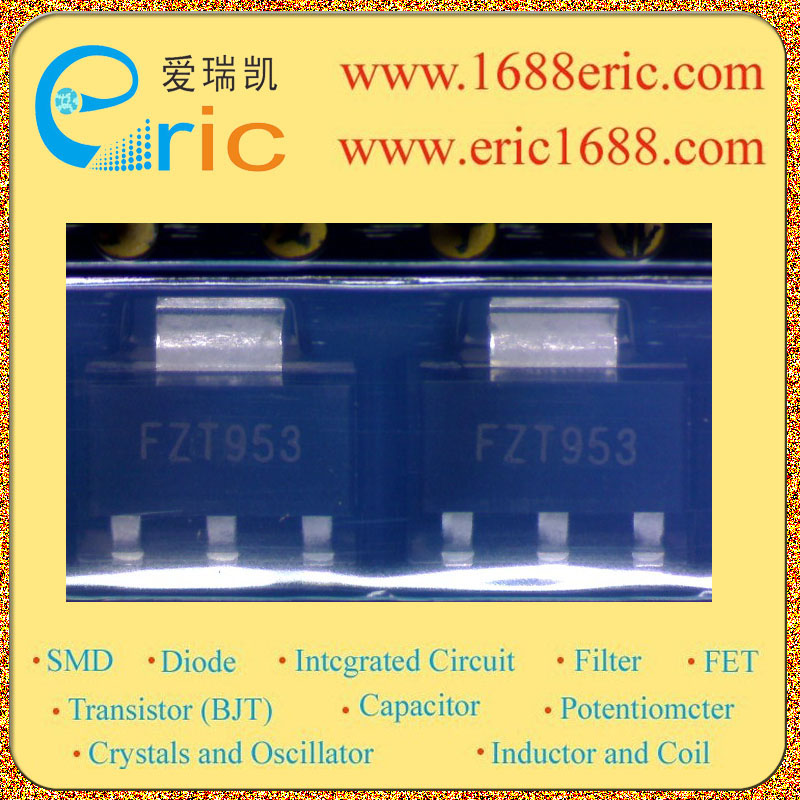

FZT953TA FZT953 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
-140V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
?100V |
| 集电极连续输出电流IC
Collector Current(IC) |
-5A |
| 截止频率fT
Transtion Frequency(fT) |
125MHz |
| 直流电流增益hFE
DC Current Gain(hFE) |
100~300 |
| 管压降VCE（sat）
Collector-Emitter SaturationVoltage |
-420mV/-0.42V |
| 耗散功率Pc
PoWer Dissipation |
3W |
| Description & Applications |
PNP SILICON PLANAR HIGH CURRENT TRANSISTORS FEATURES 5 Amps continuous current , up to 15 Amps peak current Very low saturation voltages Excellent gain characteristics specified up to 10 Amps COMPLEMENTARY TYPES FZT853 |
| 描述与应用 |
PNP硅平面高电流晶体管 特点 5安培连续电流高达15安培的峰值电流 极低的饱和电压 出色的增益特性可达10安培 互补类型FZT853 |
