FZT689BTA FZT689B 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
20V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
20V |
| 集电极连续输出电流IC
Collector Current(IC) |
3A |
| 截止频率fT
Transtion Frequency(fT) |
150MHz |
| 直流电流增益hFE
DC Current Gain(hFE) |
500 |
| 管压降VCE（sat）
Collector-Emitter Saturation Voltage |
500mV/0.5V |
| 耗散功率Pc
Power Dissipation |
2W |
| Description & Applications |

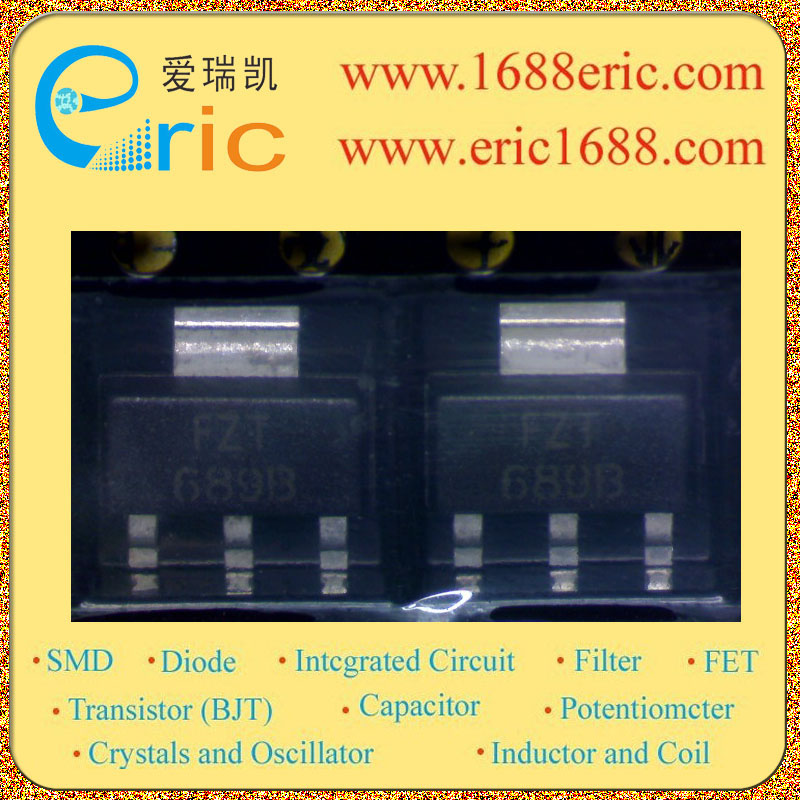

SOT223 NPN SILICON PLANAR MEDIUM POWER HIGH GAIN TRANSISTOR Gain of 400 at IC=2 Amps and low saturation voltage Extremely low equivalent on-resistance Flash gun convertors and Battery powered circuits COMPLEMENTARY TYPE - FZT789B |
| 描述与应用 |
SOT223 NPN硅平面中功率高增益晶体管 IC= 2A时增益达400 低饱和电压 极低的等效导通电阻 闪光枪转换器和电池供电电路 互补型 - FZT789B |
