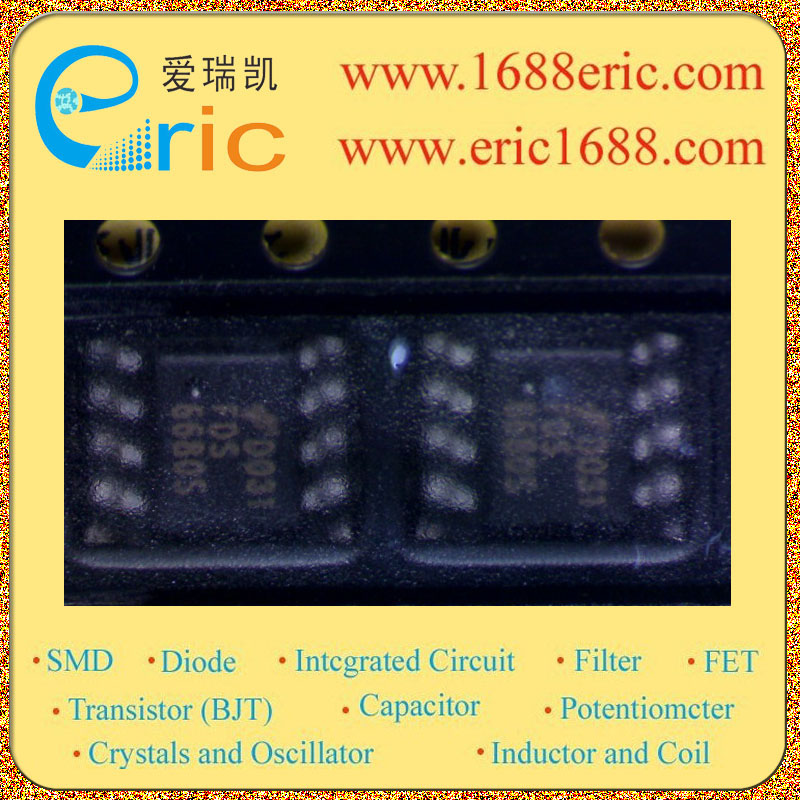

FDS6680S 的参数 |
| 最大源漏极电压Vds
Drain-Source Voltage |
30V |
| 最大栅源极电压Vgs(±)
Gate-Source Voltage |
20V |
| 最大漏极电流Id
Drain Current |
11.5A |
| 源漏极导通电阻ΩRds
DΩ/Ohmain-SouΩ/Ohmce On-State Ω/Ohmesistance |
16m?@ VGS = 4.5V, ID =9.5A |
| 开启电压Vgs（th）
Gate-Source Threshold Voltage |
1~3V |
| 耗散功率Pd
Power Dissipation |
2.5W |
| Description & Applications |
30V N-Channel Power Trench Sync FET General Description The FDS6680S is designed to replace a single SO-8 MOSFET and Schottky diode in synchronous DC:DC power supplies. This 30V MOSFET is designed to maximize power conversion efficiency, providing a low RDS(ON) and low gate charge. The FDS6680S includes an integrated Schottky diode using Fairchild’s monolithic SyncFET technology. The performance of the FDS6680S as the low-side switch in a synchronous rectifier is indistinguishable from the performance of the FDS6680 in parallel with a Schottky diode. Applications ? DC/DC converter ? Motor drives Features ? Low gate charge ? High performance trench technology for extremely low RDS(ON) ? High power and current handling capability |
| 描述与应用 |
30V N沟道功率沟槽同步FET 概述 的的FDS6680S设计来取代单一的SO-8 MOSFET和肖特基二极管同步DC：DC电源。这30V MOSFET的设计最大限度地提高电源转换效率，提供了一个低RDS（ON）和低栅极电荷。 FDS6680S包括集成肖特基二极管采用飞兆半导体的单片SyncFET技术。 FDS6680S的性能，在同步整流，低侧开关并联一个肖特基二极管的性能FDS6680无法区分。 应用 ?DC/ DC转换器 ?电机驱动器 特点 ?低栅极电荷 ?高性能沟道技术极低的RDS（ON） ?高功率和电流处理能力 |
