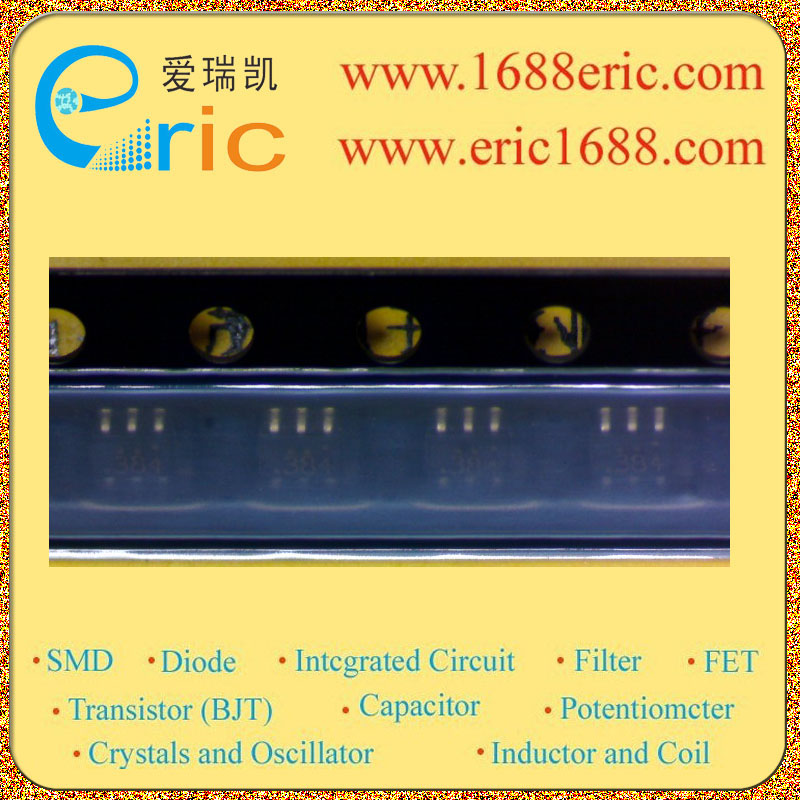

FDG6318P 38 的参数 |
| 最大源漏极电压Vds
Drain-Source Voltage |
-20V |
| 最大栅源极电压Vgs(±)
Gate-Source Voltage |
-12V |
| 最大漏极电流Id
Drain Current |
-500mA/-0.5A |
| 源漏极导通电阻Rds
Drain-Source On-State Resistance |
1200m?@ VGS = -2.5V, ID = -0.4A |
| 开启电压Vgs（th）
Gate-Source Threshold Voltage |
-0.65~-1.5V |
| 耗散功率Pd
Power Dissipation |
300mW/0.3W |
| Description & Applications |
Dual P-Channel, Digital FET General Description These dual P-Channel logic level enhancement mode MOSFET are produced using Fairchild Semiconductor’s advanced Power Trench process that has been especially tailored to minimize on-state resistance. This device has been designed especially for low voltage applications as a replacement for bipolar digital transistors and small signal MOSFETS Applications ? Battery management Features ? Very low level gate drive requirements allowing direct operation in 3V circuits ? Compact industry standard SC70-6 surface mount package |
| 描述与应用 |
双P沟道，数字FET 概述 这些双P沟道逻辑电平增强模式MOSFET采用飞兆半导体先进的功率沟槽进程，已特别是针对减少通态电阻。该设备已被作为一个替代双极数字晶体管和小信号MOSFET专为低电压应用 应用 ?电池管理 特点 ?非常低的水平栅极驱动要求可直接操作3V电路 ?紧凑型工业标准SC70-6表面贴装封装 |
