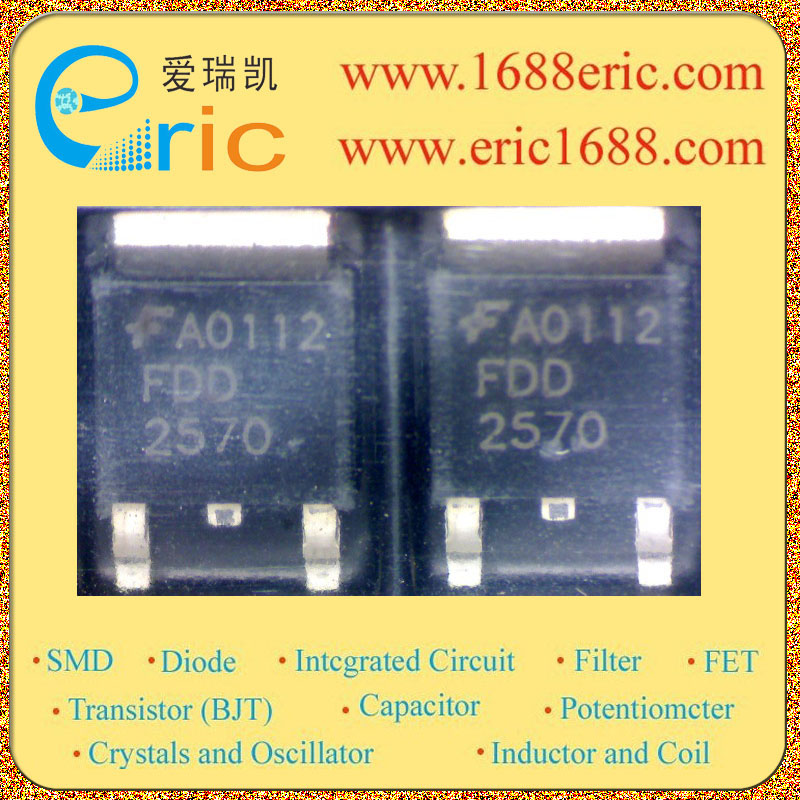

FDD2570 2570 的参数 |
| 最大源漏极电压Vds
Drain-Source Voltage |
150V |
| 最大栅源极电压Vgs(±)
Gate-Source Voltage |
20v |
| 最大漏极电流Id
Drain Current |
4.7A |
| 源漏极导通电阻ΩRds
DΩ/Ohmain-SouΩ/Ohmce On-State Ω/Ohmesistance |
0.08Ω/Ohm @4.7A,10V |
| 开启电压Vgs（th）
Gate-Source Threshold Voltage |
1.2V |
| 耗散功率Pd
Power Dissipation |
7W |
| Description & Applications |
150V N-Channel PowerTrench MOSFET General Description This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. These MOSFETs feature faster switching and lower gate charge than other MOSFETs with comparable RDS(ON) specifications. The result is a MOSFET that is easy and safer to drive (even at very high frequencies), and DC/DC ? 4.7 A, 150 V. DS(ON)= 80 m? @ VGS = 10 V RDS(ON) = 90 m? @ VGS = 6 V ? Low gate charge ? Fast switching speed ? High performance trench technology for extremely low RDS(ON) ? High power and current handling capability. |
| 描述与应用 |
150V N-沟道PowerTrench MOSFET 概述 这N沟道MOSFET的设计 专门用于提高整体效率的DC / DC 转换器采用同步或常规 开关PWM控制器。 这些MOSFET具有更快的开关和更低 比其他具有可比性的MOSFET栅极电荷 RDS（ON）规格。 其结果是一个MOSFET，很容易和更安全的驾驶 （即使在非常高的频率），和DC / DC ?低栅极电荷 ?开关速度快 ?高性能沟道技术极 低RDS（ON） ?高功率和电流处理能力 |
