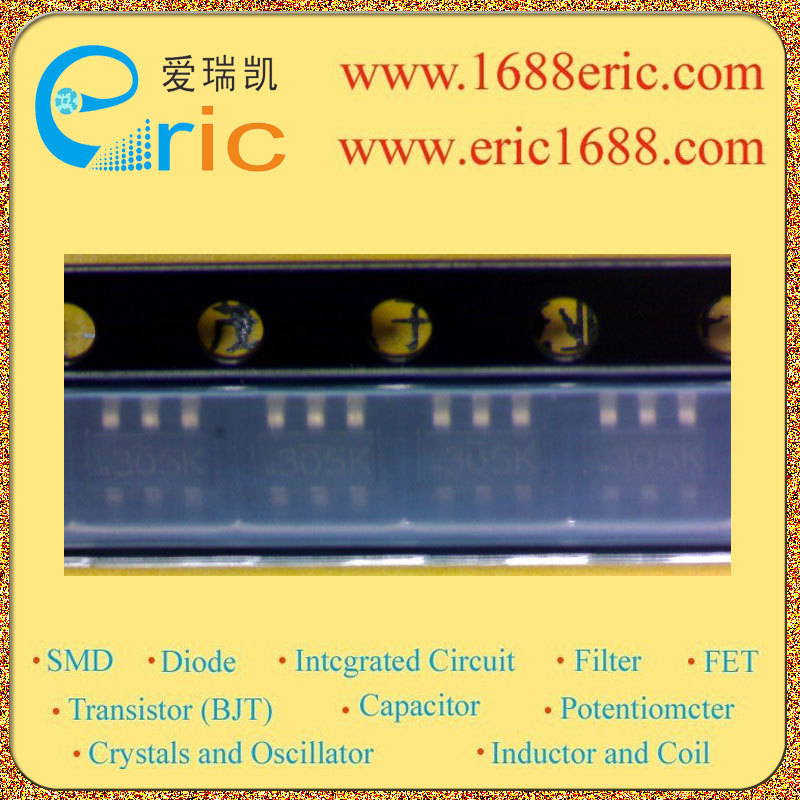

FDC6305N 305 的参数 |
| 最大源漏极电压Vds
Drain-Source Voltage |
25V |
| 最大栅源极电压Vgs(±)
Gate-Source Voltage |
8V |
| 最大漏极电流Id
Drain Current |
2.7A |
| 源漏极导通电阻Rds
Drain-Source On-State Resistance |
120m?@ VGS = 2.5V, ID = 2.2A |
| 开启电压Vgs（th）
Gate-Source Threshold Voltage |
0.4~1.5V |
| 耗散功率Pd
Power Dissipation |
960mW/0.96W |
| Description & Applications |
Dual N-Channel 2.5V Specified Power Trench MOSFET General Description These N-Channel low threshold 2.5V specified MOSFETs are produced using Fairchild Semiconductor's advanced PowerTrench process that has been especially tailored to minimize on-state resistance and yet maintain low gate charge for superior switching performance. Applications ? Load switch ? DC/DC converter ? Motor driving Features ? Low gate charge (3.5nC typical). ? Fast switching speed. ? High performance trench technology for extremely low RDS(ON) ? SuperSOTTM-6 package: small footprint |
| 描述与应用 |
双N沟道2.5V额定功率沟槽MOSFET 概述 这些N沟道低阈值2.5V MOSFET的生产采用飞兆半导体先进的PowerTrench进程，已特别定制尽量减少对通态电阻和出色的开关性能，但为保持低栅极电荷。 应用 ?负荷开关 ?DC/ DC转换器 ?电机驱动 特点 ?低栅极电荷（3.5nC典型值）。 ?快速开关速度。 ?高性能沟道技术极低的RDS（ON） ?SuperSOTTM-6包装：占地面积小 |
