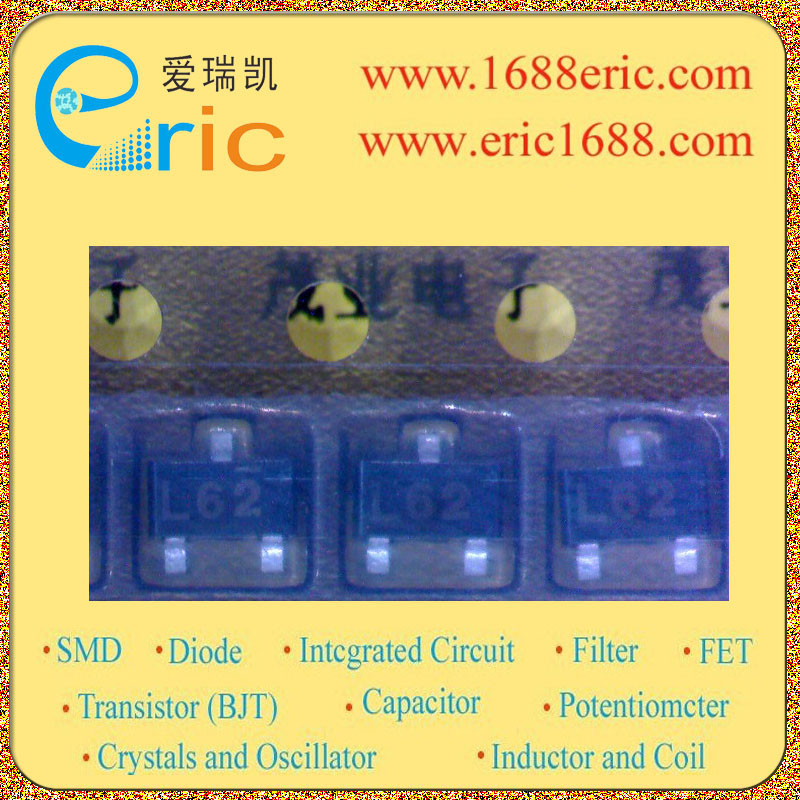

FA1L4Z L62 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
60V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
50V |
| 集电极连续输出电流IC
Collector Current(IC) |
100mA/0.1A |
| 基极输入电阻R1
Input Resistance(R1) |
47KΩ/Ohm |
| 基极-发射极输入电阻R2
Base-Emitter Resistance(R2) |
|
| 电阻比(R1/R2)
Resistance Ratio |
|
| 直流电流增益hFE
DC Current Gain(hFE) |
100-600 |
| 截止频率fT
Transtion Frequency(fT) |
|
| 耗散功率Pc
Power Dissipation |
0.2W/200mW |
| Description & Applications |
Features Resistors Built-in Type Complementary to FN1L4Z |
| 描述与应用 |
特性 内置电阻型 对管是FN1L4Z |
