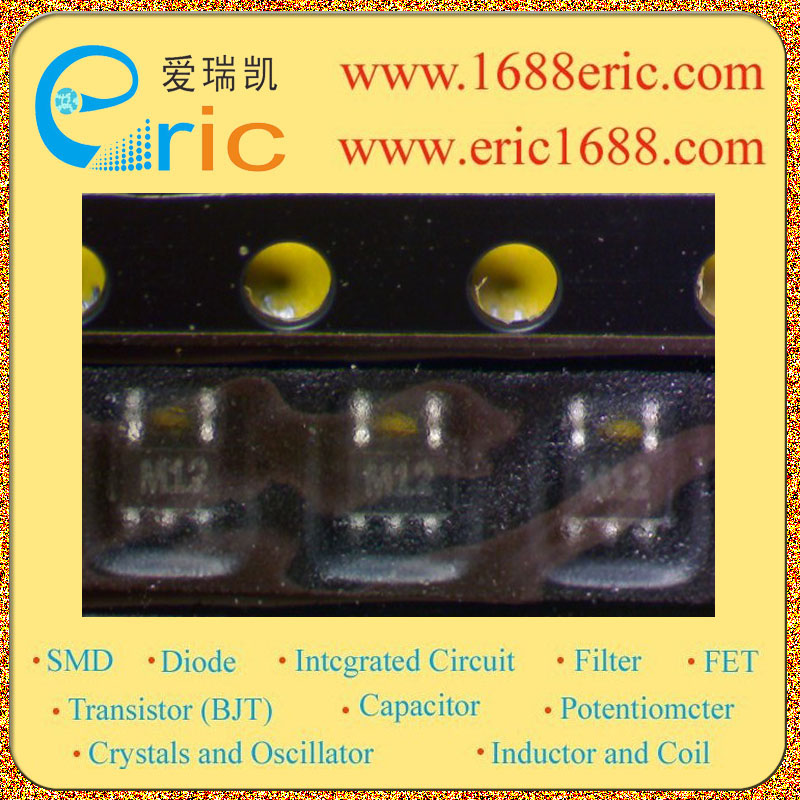

EMIF01-10005W5
 型号:  EMIF01-10005W5
 标记/丝印/代码/打字:  M12
 厂家:  ST
 封装:  SOT-353
 批号:  03+
 库存数量:  34600
 所属分类:  晶振滤波Crystal Oscillator and Filter
  滤波Filter
    EMI
 技术文档PDF:  在线阅读

 在线购买

EMIF01-10005W5 M12 的参数

类型 Type 低通 Low Pass
技术 Technology LC
通道数 Number of Channels 2
中心/截止频率 Center / Cutoff Frequency 900MHz
衰减值 Attenuation Value 24dB@900MHz
电阻 - 通道 (Ω) Resistance - Channel (Ohms) 100Ω
电流 Current
数值 Values C=50pF
ESD 保护 ESD Protection 是 Yes
Description & Applications Features Where EMI filtering in ESD sensitive equipment is required : Computers and printers Communication systems Mobile phones MCU Boards DESCRIPTION The EMIF01-10005W5 is a highly integrated array designed to suppress EMI / RFI noise in all systems subjected to electromagnetic interferences. Additionally, this filter includes an ESD protection circuitry which prevents the protected device from destruction when subjected to ESD surges up to 15 kV.
描述与应用 特点 凡EMI过滤ESD敏感设备是必需的: 电脑和打印机 通信系统 手机 MCU板 说明 EMIF01-10005W5是一个高度集成的阵列 旨在抑制EMI/ RFI噪声的所有系统 受到电磁干扰。 此外,该过滤器包括一个ESD保护电路 防止保护设备免遭破坏时 受到ESD浪涌高达15 kV
技术文档PDF下载 在线阅读



 相关型号列表

型号 标记/丝印/代码 厂家 批号 封装 数量 描述 详细资料
EMIF01-10005W5 M12 ST 05+ SOT-353 0 晶振滤波Crystal Oscillator and Filter-滤波Filter-EMI 查看
EMIF01-10005W5 M12 ST 03+ SOT-353 34600 晶振滤波Crystal Oscillator and Filter-滤波Filter-EMI 查看
EMIF01-5250SC5 EM ST 05+ SOT-153 104000 晶振滤波Crystal Oscillator and Filter-滤波Filter-EMI 查看
EMIF02-SPK01F1 ST 05+ 603 1500 晶振滤波Crystal Oscillator and Filter -滤波Filter-EMI 查看
EMIF03-SIM01 ST 04+ 2520-8点2520-8 6000 晶振滤波Crystal Oscillator and Filter -滤波Filter-EMI 查看
EMIF01-5250SC5 EMIF ST 05 SOT-153 0 晶振滤波Crystal Oscillator and Filter-滤波Filter-EMI 查看
EMIF03-SIM01F2 ST 05+ 4500 晶振滤波Crystal Oscillator and Filter -滤波Filter-EMI 查看
EMIF08-VID01F2 GS ST 10+ROHS FLIP CHIP 30000 未分类 查看
EMIF08-VID01F2 GS ST 10+ROHS FLIP CHIP 0 未分类 查看
