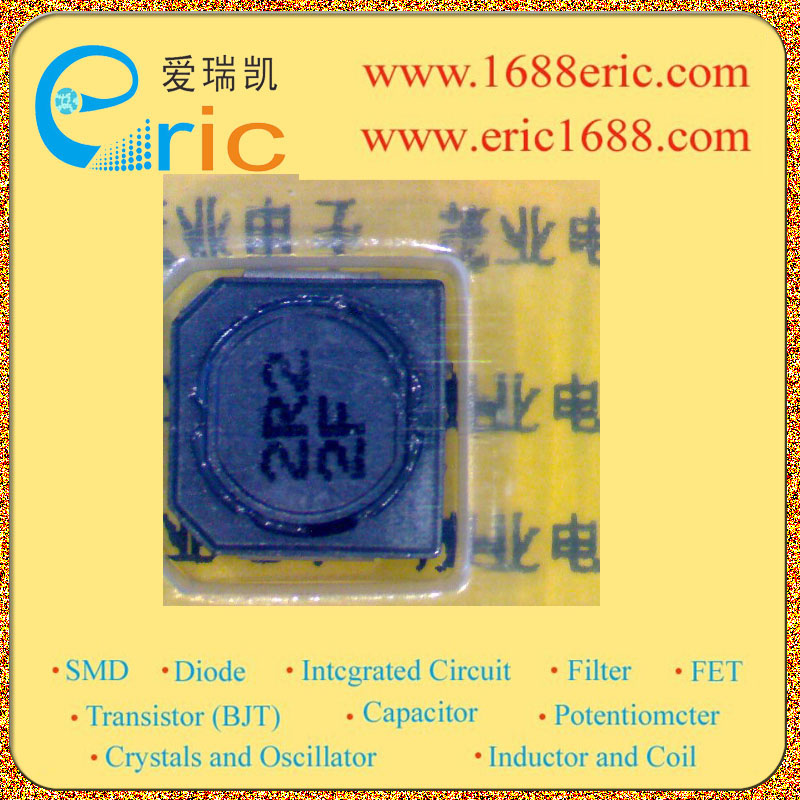

型号： |
ELL6RH2R2M |
| 标记/丝印/代码/打字： |
2R2 |
| 厂家： |
Panasonic |
| 封装： |
6M-2R2 |
| 批号： |
05+ |
| 库存数量： |
2653 |
| 所属分类： |
电感Inductor/Coil/Choke
功率电感Power Inductor |
| 技术文档PDF： |
在线阅读  |
| |
|
| 在线购买 |
|
|
|
|
ELL6RH2R2M 2R2 的参数 |
| Q值
Q Value |
|
| 电感值
Inductance |
2.2uH |
| 误差
Tolerance |
± 20% |
| 额定电流
Current Rating |
2300mA |
| 饱和电流
Current - Saturation |
|
| DC电阻DCR
DC Resistance (DCR) |
0.03Ω/Ohm |
| Description & Applications |
■ Features ● Thin (height 2.5 mm, 3.0 mm) ● Higher reliability in mounting by separating the user terminal and internal connection. ● Large current capability ● RoHS compliant ■ Recommended Applications ● Video, Audio, Mobile communications, Electric battery driven equipment ● As a decoupling choke coil in DC-DC converte rs ■ Features ● Thin (height 2.5 mm, 3.0 mm) ● Higher reliability in mounting by separating the user terminal and internal connection. ● Large current capability ● RoHS compliant ■ Cautionary Notes Regarding Usage in DC-DC converters ● Maximum Dissipation of 1 W. ● Maximum case temperature of 105 °C (Ambient & self-heating temperature) |
| 描述与应用 |
■特点 ●薄（高度2.5毫米，3.0mm厚） ●更高的可靠性，通过分离用户终端的安装 和内部连接。 ●大电流能力 ●符合RoHS标准 ■推荐应用 ●视频，音频，移动通信，电气 电池驱动的设备 ●去耦扼流线圈在DC-DC转换器具RS中 ■特点 ●薄（高度2.5毫米，3.0mm厚） ●更高的可靠性，通过分离用户终端的安装 和内部连接。 ●大电流能力 ●符合RoHS标准 ■关于使用DC-DC转换器的注意事项 ●最大功耗为1 W ●最大外壳温度为105°C （环境和自动加热温度） |
| 技术文档PDF下载 |
在线阅读 |
|
|
|
|
|
