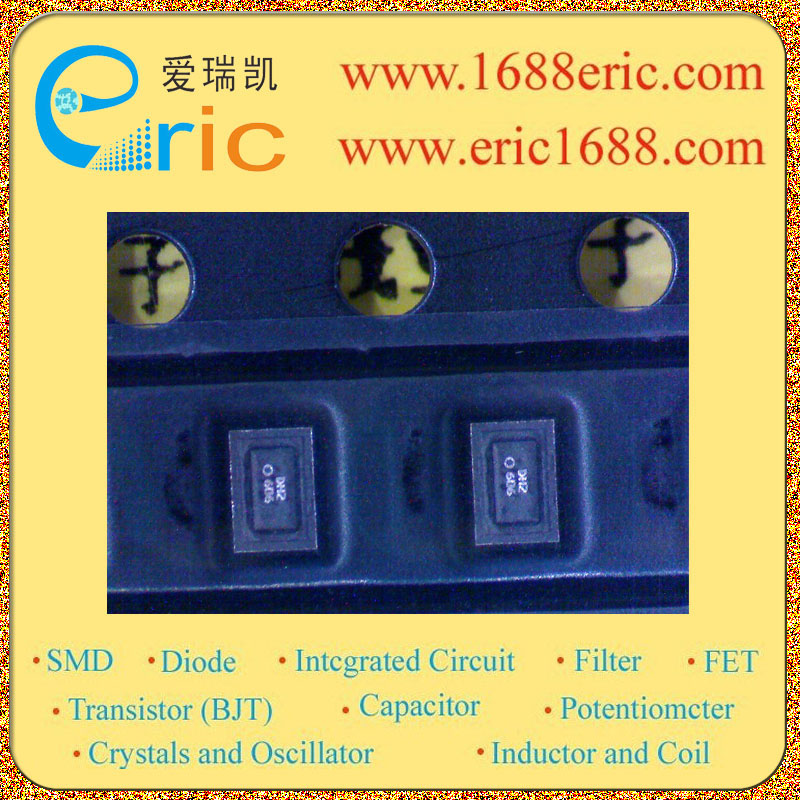

EFCH1842TCH6
 型号:  EFCH1842TCH6
 标记/丝印/代码/打字:
 厂家:  Panasonic
 封装:  805
 批号:  06+
 库存数量:  382063
 所属分类:  晶振滤波Crystal Oscillator and Filter
  滤波Filter
    声表滤波器SAW Filter
 技术文档PDF:  在线阅读

 在线购买

EFCH1842TCH6  的参数

频率 Frequency 1.842GHz
带宽 Bandwidth
滤波器类型 Filter Type
插入损耗 Insertion Loss
Description & Applications SAW Filter for Cellular Telephone which incorporates highly-precise interdigited electrodes achieves low insertion loss, high selectivity. Thus the fi lter has wide applications to bandpass fi ltering circuits for cellular telephones and portable wireless equipment. ■ Features ● Stable against severe conditions of vibration and shock thanks to the unique monolithic construction of the fi lter ● Low insertion loss and excellent selectivity ● Contributes to circuit simplifi cation and adjustment free ● Saves the hight on PC board ■ Recommended Applications ● The RF-stage band pass fi lter for cellular telephone or portable wireless equipment
描述与应用 蜂窝电话,其中包括SAW滤波器 高度精确的梳型电极,实现了低 插入损耗,高选择性。因此具有广泛的科幻滤波器 应用到带通科幻ltering电路的用于蜂窝 电话和便携式无线设备。 ■特点 ●对振动的恶劣条件下的稳定 ,震荡感谢独特的单片建设 滤波器 ●低插入损耗和优良的选择性 ●有利于电路的简体中文版阳离子和调整 ●节省PC板HIGHT ■推荐应用 ●RF级带通科幻滤波器用于蜂窝电话或 便携式无线设备
技术文档PDF下载 在线阅读



 相关型号列表

型号 标记/丝印/代码 厂家 批号 封装 数量 描述 详细资料
EFCH1842TCH6 Panasonic 06+ 805 0 晶振滤波Crystal Oscillator and Filter-滤波Filter-声表滤波器SAW Filter 查看
EFCH1842TCH6 Panasonic 06+ 805 382063 晶振滤波Crystal Oscillator and Filter-滤波Filter-声表滤波器SAW Filter 查看
EFCH1960MTE8 Panasonic 02+ 4532 4800 晶振滤波Crystal Oscillator and Filter -滤波Filter-声表滤波器SAW Filter 查看
EFCH1960TCA1 Panasonic 06+ 805 0 晶振滤波Crystal Oscillator and Filter-滤波Filter-声表滤波器SAW Filter 查看
EFCH1960TCE8 Panasonic 06+ 2520 2000 晶振滤波Crystal Oscillator and Filter -滤波Filter-声表滤波器SAW Filter 查看
EFCH1842TCA7 Panasonic 06+ 805 500 晶振滤波Crystal Oscillator and Filter-滤波Filter-声表滤波器SAW Filter 查看
EFCH1960TCA1 PANASONIC 06+ROHS4KM 0805 36000 晶振滤波Crystal Oscillator and Filter 查看
