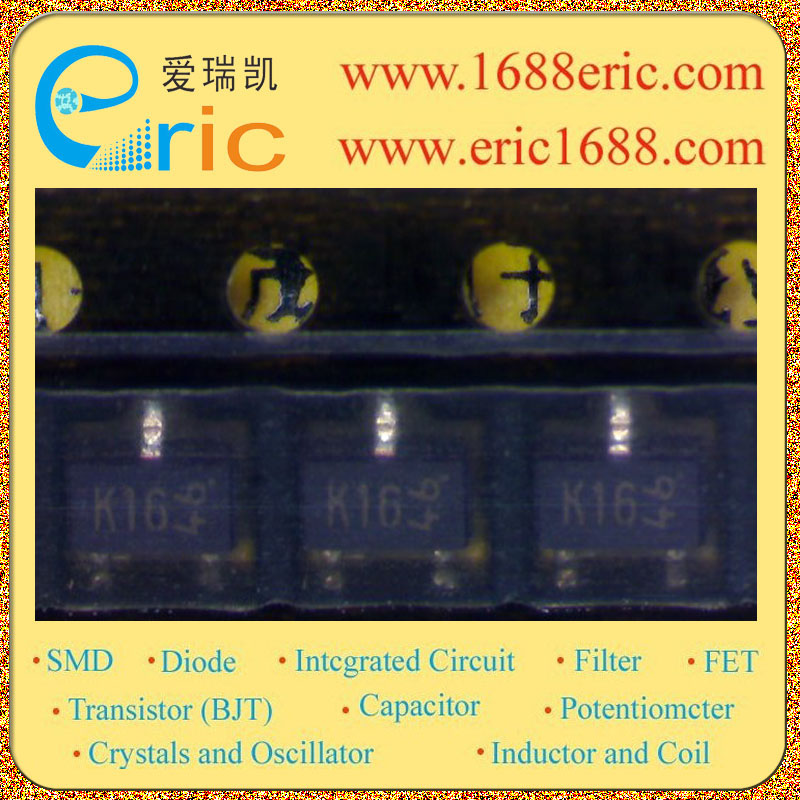

DTA144GK
 型号:  DTA144GK
 标记/丝印/代码/打字:  K16
 厂家:  ROHM
 封装:  SOT-23/SC-59/SMT3
 批号:  05+
 库存数量:  0
 所属分类:  三极管Bipolar Junction Transistors(BJT)
  带阻尼PNPPNP Bipolar Digital Transistor (BRT)
 技术文档PDF:  在线阅读

 在线购买

DTA144GK K16 的参数

集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) -50V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) -50V
集电极连续输出电流IC Collector Current(IC) -100mA/-0.1A
基极输入电阻R1 Input Resistance(R1) 47KΩ/Ohm
基极-发射极输入电阻R2 Base-Emitter Resistance(R2)
电阻比(R1/R2) Resistance Ratio
直流电流增益hFE DC Current Gain(hFE) 68
截止频率fT Transtion Frequency(fT) 250MHz
耗散功率Pc Power Dissipation 0.2W/200mW
Description & Applications Feature ?Digital transistors (built-in resistor) ?Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit). ?The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. ?Only the on/off conditions need to be set for operation, making device design easy
描述与应用 特点 ?数字晶体管(内置电阻) ?内置启用偏置电阻器的逆变器电路的配置,而无需连接外部输入电阻(见等效电路)。 ?偏置电阻组成的薄膜电阻完全隔离,允许输入的正偏压。他们也有优势,几乎完全消除了寄生效应。 ?只有开/关条件需要设置操作,使装置的设计容易
技术文档PDF下载 在线阅读



 相关型号列表

型号 标记/丝印/代码 厂家 批号 封装 数量 描述 详细资料
DDTA144ECA-7 P20 DIODES 03+ SOT-23/SC-59 1000 三极管Bipolar Junction Transistors(BJT)-带阻尼PNPPNP Bipolar Digital Transistor (BRT) 查看
DDTA144ECA-7 P2O DIODES 04+3KROHS SOT-23/SC-59 0 三极管Bipolar Junction Transistors(BJT)-带阻尼PNPPNP Bipolar Digital Transistor (BRT) 查看
DTA144EE 16 ROHM 05+ SOT-523/EMT3 0 三极管Bipolar Junction Transistors(BJT)-带阻尼PNPPNP Bipolar Digital Transistor (BRT) 查看
DTA144EE 16 ROHM 05+NOPB5K SOT-523/EMT3 28600 三极管Bipolar Junction Transistors(BJT)-带阻尼PNPPNP Bipolar Digital Transistor (BRT) 查看
DTA144EET1 6C ON 05+ SOT-523/SC-75 1700 三极管Bipolar Junction Transistors(BJT)-带阻尼PNPPNP Bipolar Digital Transistor (BRT) 查看
DTA144EET1 6C ON 04+ SOT-523/SC-75 0 三极管Bipolar Junction Transistors(BJT)-带阻尼PNPPNP Bipolar Digital Transistor (BRT) 查看
DTA144EH 16 ROHM 02+ sot-723/VMT3 0 三极管Bipolar Junction Transistors(BJT)-带阻尼PNPPNP Bipolar Digital Transistor (BRT) 查看
DTA144EH 16 ROHM 05+ SOT-523/EMT3 82500 三极管Bipolar Junction Transistors(BJT)-带阻尼PNPPNP Bipolar Digital Transistor (BRT) 查看
DTA144EK 16 ROHM 05+ROHS SOT-23/SC-59/SMT3 20890 三极管Bipolar Junction Transistors(BJT)-带阻尼PNPPNP Bipolar Digital Transistor (BRT) 查看
DTA144EKA 16 ROHM 06+rohs SOT-23/SC-59/SMT3 6000 三极管Bipolar Junction Transistors(BJT)-带阻尼PNPPNP Bipolar Digital Transistor (BRT) 查看
DTA144EM 16 ROHM 04+12r04nopb sot-723/VMT3 0 三极管Bipolar Junction Transistors(BJT)-带阻尼PNPPNP Bipolar Digital Transistor (BRT) 查看
DTA144EM 16 ROHM 05+NOPB60K sot-723/VMT3 198400 三极管Bipolar Junction Transistors(BJT)-带阻尼PNPPNP Bipolar Digital Transistor (BRT) 查看
DTA144EM 16 ROHM 05+ sot-723/VMT3 0 三极管Bipolar Junction Transistors(BJT)-带阻尼PNPPNP Bipolar Digital Transistor (BRT) 查看
DTA144ET 16 ROHM 05+ SOT-523/EMT3 0 三极管Bipolar Junction Transistors(BJT)-带阻尼PNPPNP Bipolar Digital Transistor (BRT) 查看
DTA144EUA 16 ROHM 05+ SOT-323/SC-70/UMT3 0 三极管Bipolar Junction Transistors(BJT)-带阻尼PNPPNP Bipolar Digital Transistor (BRT) 查看
DTA144EUA 16 ROHM 05+NOPB300 SOT-323/SC-70/UMT3 7740 三极管Bipolar Junction Transistors(BJT)-带阻尼PNPPNP Bipolar Digital Transistor (BRT) 查看
DTA144GK K16 ROHM 05+3Knopb SOT-23/SC-59/SMT3 0 三极管Bipolar Junction Transistors(BJT)-带阻尼PNPPNP Bipolar Digital Transistor (BRT) 查看
DTA144GK K16 ROHM 05+ SOT-23/SC-59/SMT3 0 三极管Bipolar Junction Transistors(BJT)-带阻尼PNPPNP Bipolar Digital Transistor (BRT) 查看
DTA144GUA K16 ROHM 05+ SOT-323/SC-70/UMT3 0 三极管Bipolar Junction Transistors(BJT)-带阻尼PNPPNP Bipolar Digital Transistor (BRT) 查看
DTA144GUA K16 ROHM 05+ SOT-323/SC-70/UMT3 5460 三极管Bipolar Junction Transistors(BJT)-带阻尼PNPPNP Bipolar Digital Transistor (BRT) 查看
