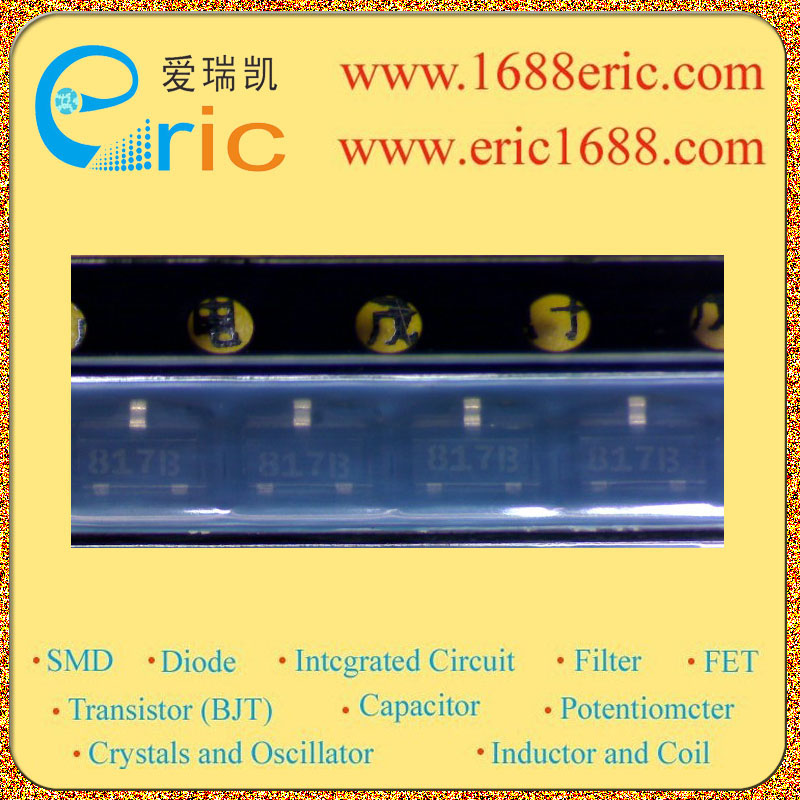

DS1817R-10 817 的参数 |
| 受检测电压数
Number of Voltages Monitored |
1 |
| 检测电压/复位阈值电压VDET
Voltage - Threshold |
2.8V |
| 工作电压VIN
Voltage - Supply |
5.5V |
| 高/低有效复位
Reset |
高 Active High |
| 输出类型
Output Type |
push pull |
| 看门狗
Watchdog |
无 No |
| 功耗Pd
Power Dissipation |
|
| Description & Applications |
?3.3V EconoReset with Active High Push-Pull Output ?Automatically restarts a microprocessor after power failure ?Maintains reset for 150 ms after VCC returns to an in-tolerance condition ?Reduces need for discrete components ?Precision temperature-compensated voltage ?reference and voltage sensor ?Low-cost TO-92, or space saving surface ?mount SOT-23 packages available ?Push-pull active high output ?Operating temperature -40°C to +85°C |
| 描述与应用 |
?高电平推挽输出3.3V，经济型复位芯片 ?自动断电后重新启动微处理器 ?保持复位后150 ms VCC返回容差条件 ?减少需要的分立元件 ?精密温度补偿电压 ?基准和电压传感器 ?低成本TO-92或节省空间的表面 ?安装SOT-23封装 ?推挽式高电平有效输出 ?工作温度-40°C至+85°C |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| DS1811S |
PMP6 |
DALLAS |
05+ |
SOT-23 |
45 |
集成电路ICIntegrated Circuit（IC）-其它Other |
查看 |
| DS1812R-010 |
812R |
DALLAS |
05+ |
SOT-23 |
0 |
电源管理ICPower Management IC/PMIC-电压检测器Supervisor |
查看 |
| DS1817R-10 |
817 |
DALLAS |
05+ |
SOT-23 |
1694 |
电源管理ICPower Management IC/PMIC-电压检测器Supervisor |
查看 |
| KDS181 |
A3 |
KEC |
05+1RNOPB |
SOT-23/SC-59 |
9000 |
二极管Diodes-开关二极管Switching Diodes-双管共阳极1 PAir Common Anode |
查看 |
| KDS181 |
A3 |
KEC |
05+NOPB2K |
SOT-23/SC-59 |
4600 |
二极管Diodes-开关二极管Switching Diodes-双管共阳极1 PAir Common Anode |
查看 |
| DS1818R-10 |
818B |
DALLAS |
05+ |
SOT-23 |
230 |
集成电路ICIntegrated Circuit（IC）-其它Other |
查看 |
| DS1813R-10 |
813B |
DALLAS |
05+ |
SOT-23 |
1000 |
集成电路ICIntegrated Circuit（IC）-其它Other |
查看 |
| KDS181A |
A3 |
KEC |
05+ |
SOT-23/SC-59 |
0 |
二极管Diodes-开关二极管Switching Diodes-双管共阳极1 PAir Common Anode |
查看 |
|
|
|
