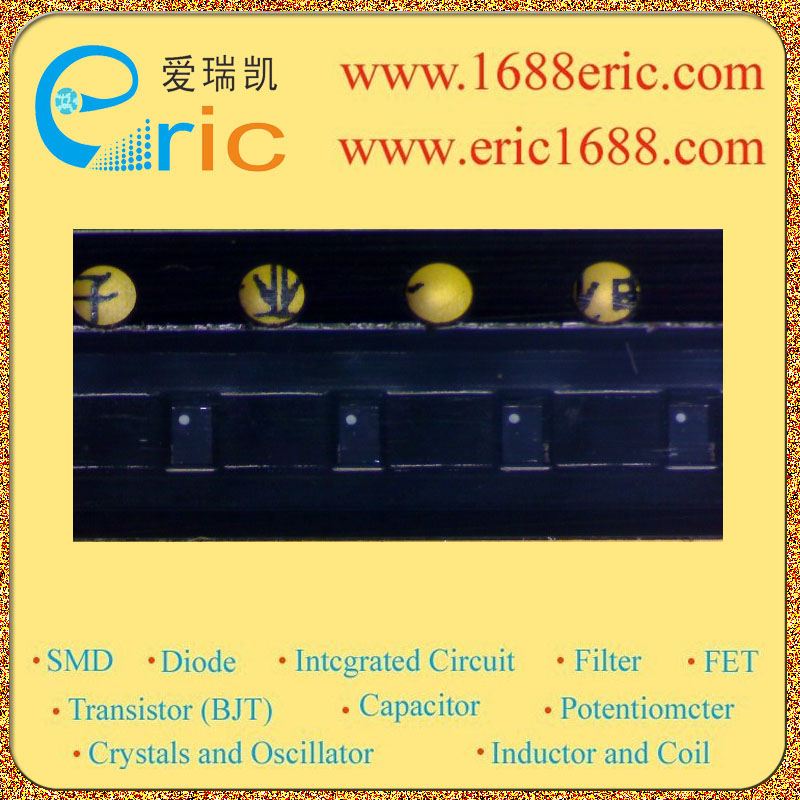

CSPEMI201A AB 的参数 |
| 类型
Type |
低通 Low Pass |
| 技术
Technology |
RC |
| 通道数
Number of Channels |
2 |
| 中心/截止频率
Center / Cutoff Frequency |
31MHz |
| 衰减值
Attenuation Value |
35dB@800MHz-2700MHz |
| 电阻 - 通道 (Ω)
Resistance - Channel (Ohms) |
100Ω |
| 电流
Current |
|
| 数值
Values |
C=100pF |
| ESD 保护
ESD Protection |
是 Yes |
| Description & Applications |
Features ? Two Channels of EMI Filtering ? Pi?Style EMI Filters in a Capacitor?Resistor?Capacitor (C?R?C) Network ? Greater than 40 dB Attenuation at 1 GHz ? ±8 kV ESD Protection on each Channel (IEC 61000?4?2 Level 4, Contact Discharge) ? ±15 kV ESD Protection in each Channel (HBM) ? Supports AC Signals ? Ideal for Audio Applications ? Extremely Low Lead Inductance for Optimum Filter and ESD Performance ? 5?Bump, 0.930 x 1.410 mm Footprint Chip Scale Package (CSP) ? These Devices are Pb?Free and are RoHS Compliant Applications ? EMI Filtering and ESD Protection for Headset Speaker Ports ? Wireless Handsets ? Handheld PCs / PDAs ? MP3 Players ? Digital Camcorders ? Notebooks ? Desktop PCs |
| 描述与应用 |
特点 ?双通道EMI滤波 ?PI式EMI过滤器在一个电容 - 电阻 - 电容（C-R-C） 网络 ?大于40 dB衰减为1 GHz ?±8 kV ESD保护每个通道 （IEC61000-4-2第4级，接触放电） ?±15 kV的ESD保护每个通道（HBM） ?支持AC信号 - 音频应用的理想选择 ?极低的引线电感的最佳滤波器和ESD 性能 ?5焊球，0.930 x1.410 mm足迹芯片级封装（CSP） ?这些器件是无铅，符合RoHS标准 应用 ?EMI滤波和ESD保护耳机扬声器端口 ?无线手机 ?掌上电脑/掌上电脑 ?MP3播放器 ?数码摄像机 ?笔记本电脑 ?台式电脑 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| CSPEMI201A |
AB |
California Micro Devices |
05+ |
CSP-5 |
1000 |
晶振滤波Crystal Oscillator and Filter-滤波Filter-EMI |
查看 |
| CSPEMI202A |
|
California Micro Devices |
05+ |
CSP-5 |
3000 |
晶振滤波Crystal Oscillator and Filter-滤波Filter-EMI |
查看 |
| CSPEMI306A |
306A |
California Micro Devices |
05+ |
CSP-15 |
6900 |
晶振滤波Crystal Oscillator and Filter-滤波Filter-EMI |
查看 |
| CSPEMI307A |
307A |
California Micro Devices |
03+ |
CSP-15 |
5800 |
晶振滤波Crystal Oscillator and Filter-滤波Filter-EMI |
查看 |
| CSPEMI606G-LGE |
606 |
California Micro Devices |
05+NOPB |
CSP-15 |
400 |
晶振滤波Crystal Oscillator and Filter-滤波Filter-EMI |
查看 |
| CSPEMI201AG |
AB |
California Micro Devices |
06+NOPB |
CSP-5 |
3797 |
晶振滤波Crystal Oscillator and Filter-滤波Filter-EMI |
查看 |
|
|
|
